دیتاشیت SN74ALS841DW

SN74ALS841/842, SN74AS841A

مشخصات دیتاشیت

نام دیتاشیت SN74ALS841/842, SN74AS841A
حجم فایل 222.149 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

دانلود دیتاشیت SN74ALS841/842, SN74AS841A

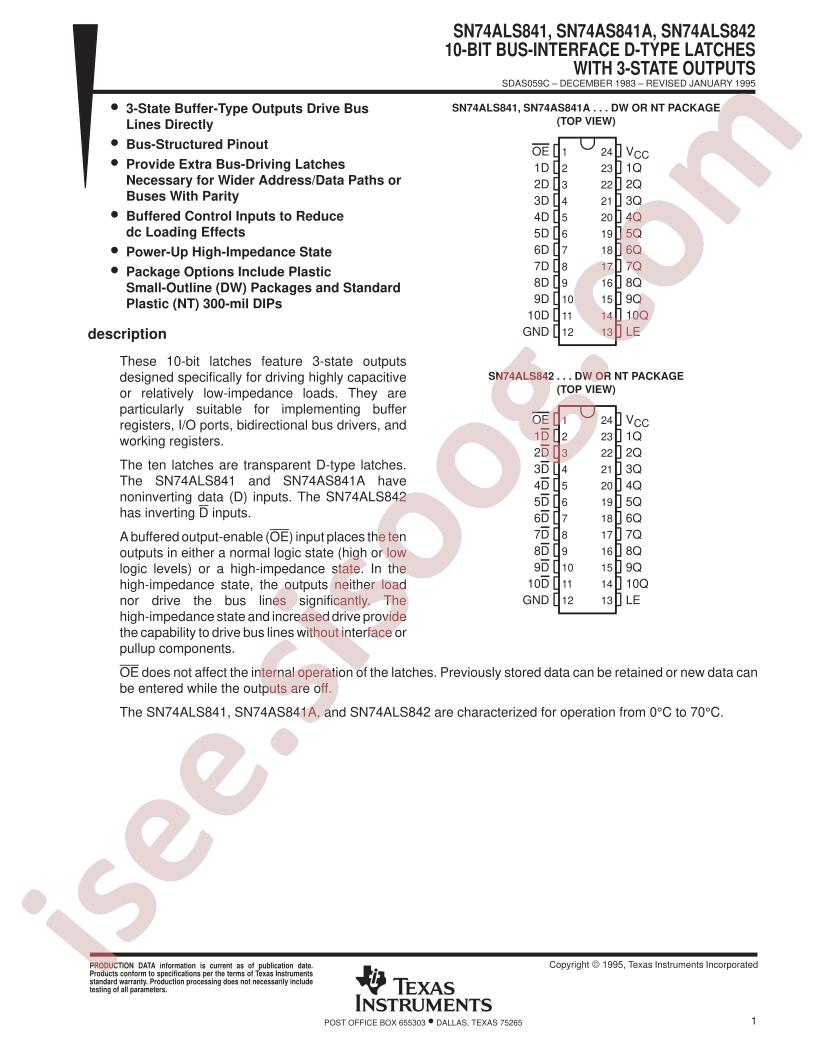

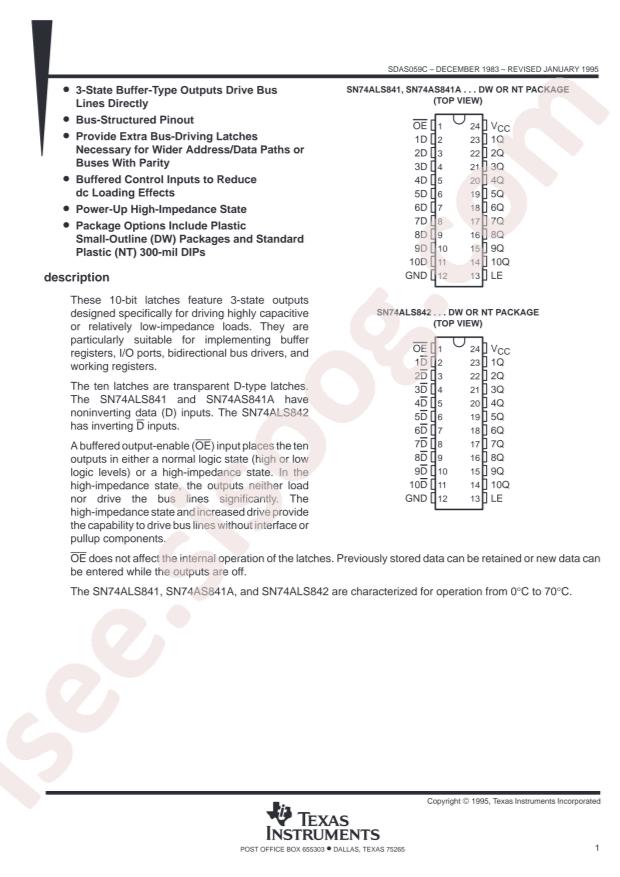

SN74ALS841/842, SN74AS841A Datasheet

مشخصات

  • RoHS: true
  • Series: 74ALS
  • Category: Logic ICs/Latches
  • Datasheet: Texas Instruments SN74ALS841DW
  • Logic Type: D-Typelocking Latch
  • Output Type: Tri-State
  • Sink Current: 24mA
  • Source Current: 2.6mA
  • Supply Voltage: 4.5V~5.5V
  • Propagation Delay: 7ns
  • OperatingTemperature: 0°C~+70°C
  • Package: SOP-24-300mil
  • Manufacturer: Texas Instruments
  • Voltage - Supply: 4.5V ~ 5.5V
  • Base Part Number: SN74ALS8
  • Operating Temperature: 0°C ~ 70°C
  • Circuit: 10:10
  • Current - Output High, Low: 2.6mA, 24mA
  • Delay Time - Propagation: 7ns
  • Supplier Device Package: 24-SOIC
  • Independent Circuits: 1
  • Mounting Type: Surface Mount
  • Package / Case: 24-SOIC (0.295", 7.50mm Width)
  • Packaging: Tube
  • Part Status: Active
  • detail: D-Type Transparent Latch 1 Channel 10:10 IC Tri-State 24-SOIC
