دیتاشیت MCP1702T-3302E/MB

MCP1702

مشخصات دیتاشیت

نام دیتاشیت MCP1702
حجم فایل 438.229 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

دانلود دیتاشیت MCP1702

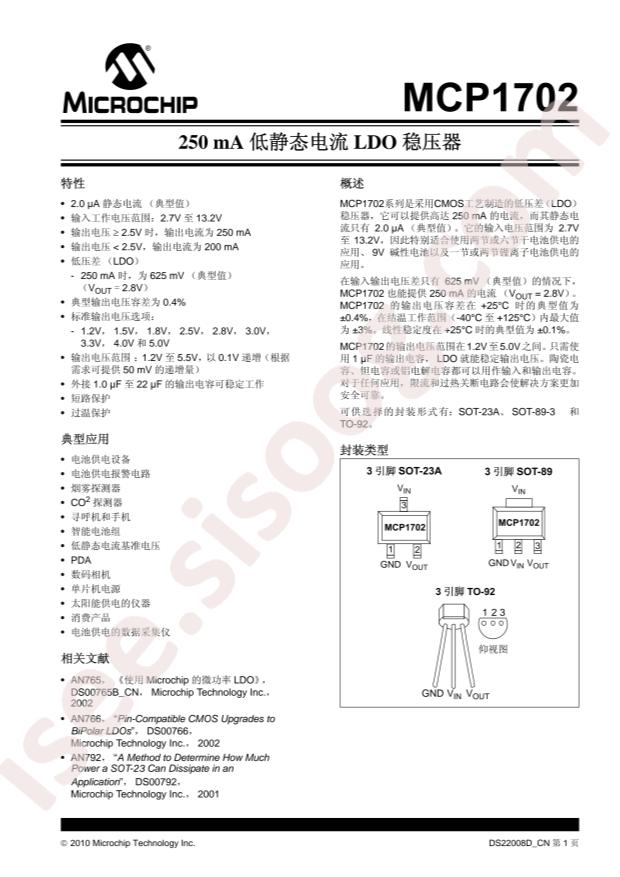

MCP1702 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Microchip Tech MCP1702T-3302E/MB
  • Output Type: Fixed
  • Output Current: 250mA
  • Output Voltage: 3.3V~3.3V
  • Dropout Voltage: 725mV@(250mA)
  • Output Polarity: Positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 13.2V
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Ground Current): 5uA
  • Power Supply Rejection Ratio (PSRR): 44dB@(100Hz)
  • Package: SOT-89-3
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Positive
  • Number of Regulators: 1
  • Voltage - Input (Max): 13.2V
  • Voltage - Output (Min/Fixed): 3.3V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.725V @ 250mA
  • Current - Output: 250mA
  • Current - Quiescent (Iq): 5µA
  • PSRR: 44dB (100Hz)
  • Control Features: -
  • Protection Features: Over Current, Over Temperature, Short Circuit
  • Mounting Type: Surface Mount
  • Package / Case: TO-243AA
  • Supplier Device Package: SOT-89-3
  • Base Part Number: MCP1702
  • detail: Linear Voltage Regulator IC 1 Output 250mA SOT-89-3
