دیتاشیت MCP1402T-E/OT
مشخصات دیتاشیت
| نام دیتاشیت | MCP1401,02 Series |
|---|---|
| حجم فایل | 338.162 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |
دانلود دیتاشیت MCP1401,02 Series |

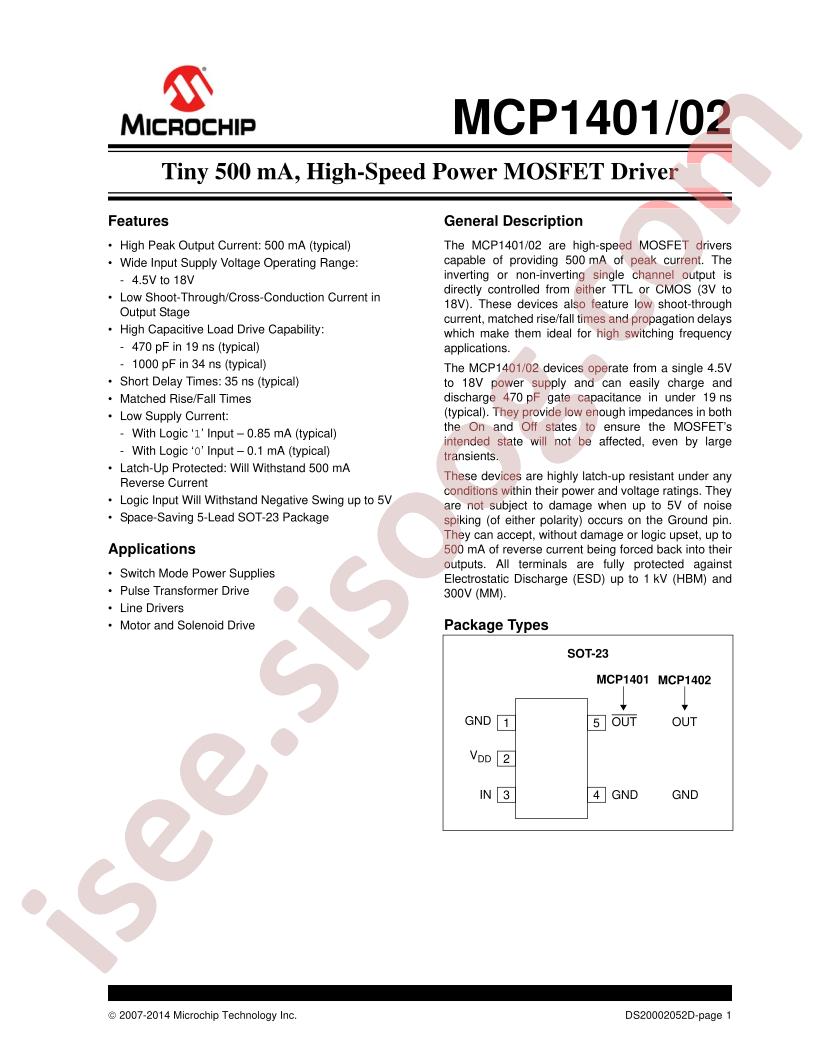

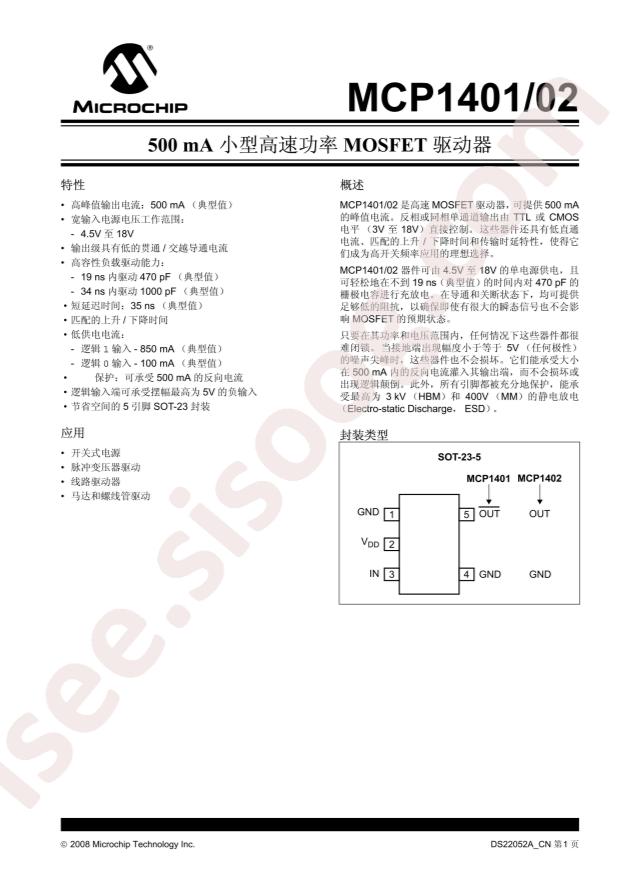

MCP1401,02 Series Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Gate Drive ICs
- Datasheet: Microchip Tech MCP1402T-E/OT
- Fall Time: 15ns
- Load Type: IGBT;MOSFET
- Rise Time: 19ns
- Supply Voltage: 4.5V~18V
- Number of Drivers: 1
- Driven Configuration: Low Side
- Operating Temperature: -40°C~+150°C@(Tj)
- Peak Output Current(sink): 500mA
- Peak Output Current(source): 500mA
- Package: SOT-23-5
- Manufacturer: Microchip Tech
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Channel Type: Single
- Gate Type: IGBT, N-Channel, P-Channel MOSFET
- Voltage - Supply: 4.5V ~ 18V
- Logic Voltage - VIL, VIH: 0.8V, 2.4V
- Current - Peak Output (Source, Sink): 500mA, 500mA
- Input Type: Non-Inverting
- Rise / Fall Time (Typ): 19ns, 15ns
- Mounting Type: Surface Mount
- Package / Case: SC-74A, SOT-753
- Supplier Device Package: SOT-23-5
- Base Part Number: MCP1402
- detail: Low-Side Gate Driver IC Non-Inverting SOT-23-5
