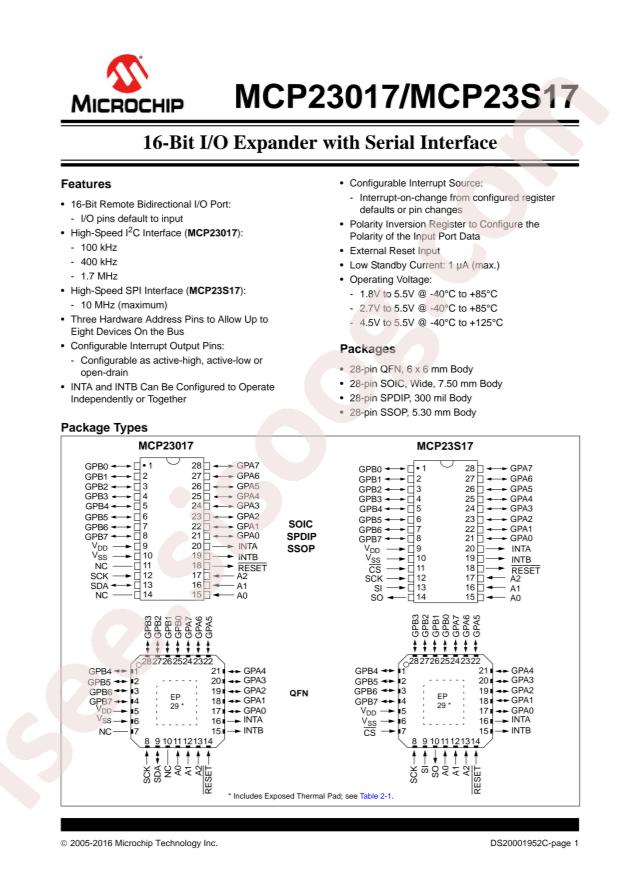

دیتاشیت MCP23017-E/SP
مشخصات دیتاشیت
| نام دیتاشیت | MCP23017, MCP23S17 Datasheet |
|---|---|
| حجم فایل | 865.289 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 42 |
دانلود دیتاشیت MCP23017, MCP23S17 Datasheet |
MCP23017, MCP23S17 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Communication Interface Chip/UART/485/232/I/O Expanders
- Datasheet: Microchip Tech MCP23017-E/SP
- Interface: I2C
- Output Type: Push-pull
- Supply Voltage: 1.8V~5.5V
- Clock Frequency: 1.7MHz
- Interrupt Output: 有中断输出
- Operating Temperature: -40°C~+125°C
- Package: SPDIP-28
- Manufacturer: Microchip Tech
- Series: -
- Packaging: Tube
- Part Status: Active
- Number of I/O: 16
- Features: POR
- Current - Output Source/Sink: 25mA
- Voltage - Supply: 1.8V ~ 5.5V
- Mounting Type: Through Hole
- Package / Case: 28-DIP (0.300", 7.62mm)
- Supplier Device Package: 28-SPDIP
- Base Part Number: MCP23017
- detail: I/O Expander 16 I²C 1.7MHz 28-SPDIP
