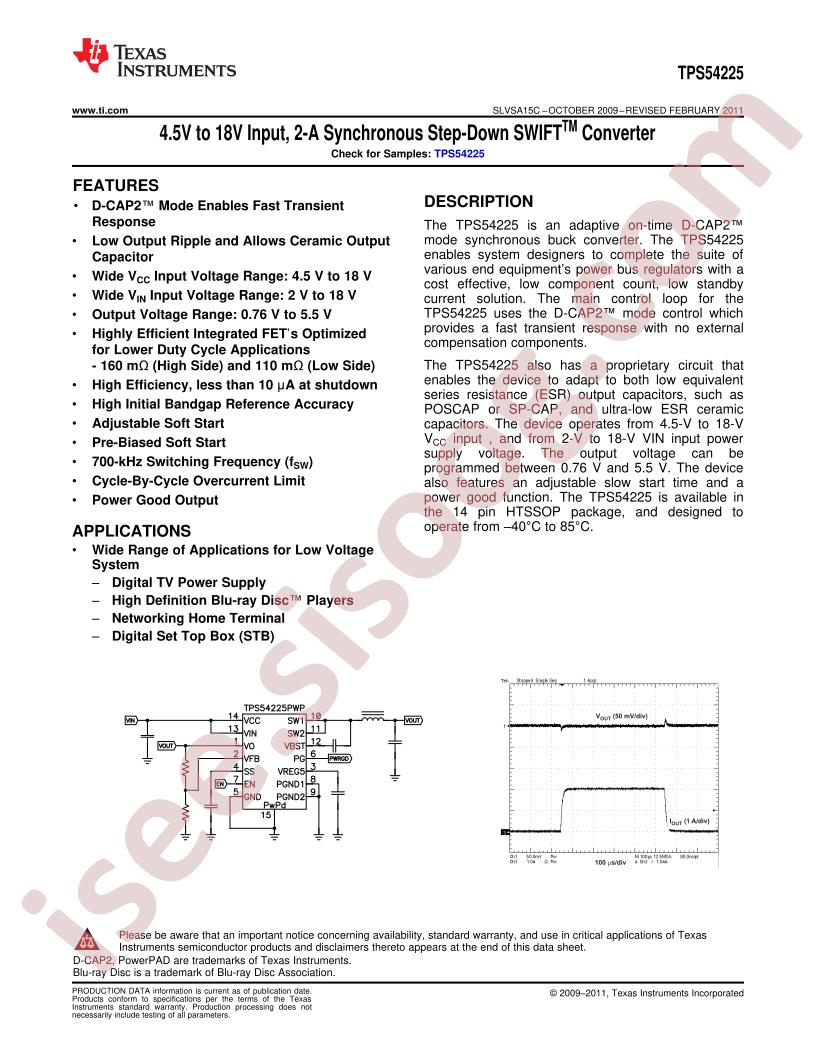

TPS54225 Datasheet
Datasheet specifications
| Datasheet's name | TPS54225 |
|---|---|
| File size | 1193.084 KB |
| File type | |
| Number of pages | 26 |
Download Datasheet TPS54225 |
Download Datasheet |
|---|
Other documentations
TPS54225EVM-538 Guide 14 pages
Technical specifications
- Series: SWIFT™, D-CAP2™
- Board Type: Fully Populated
- Outputs and Type: 1, Non-Isolated
- Current - Output: 2A
- Frequency - Switching: 700kHz
- Main Purpose: DC/DC, Step Down
- Part Status: Active
- Base Part Number: TPS542
- Utilized IC / Part: TPS54225
- Voltage - Input: 4.5V ~ 17V
- Manufacturer: Texas Instruments
- Voltage - Output: 1.05V
- Supplied Contents: Board(s)
- Regulator Topology: Buck
- detail: TPS54225 SWIFT™, D-CAP2™ DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
