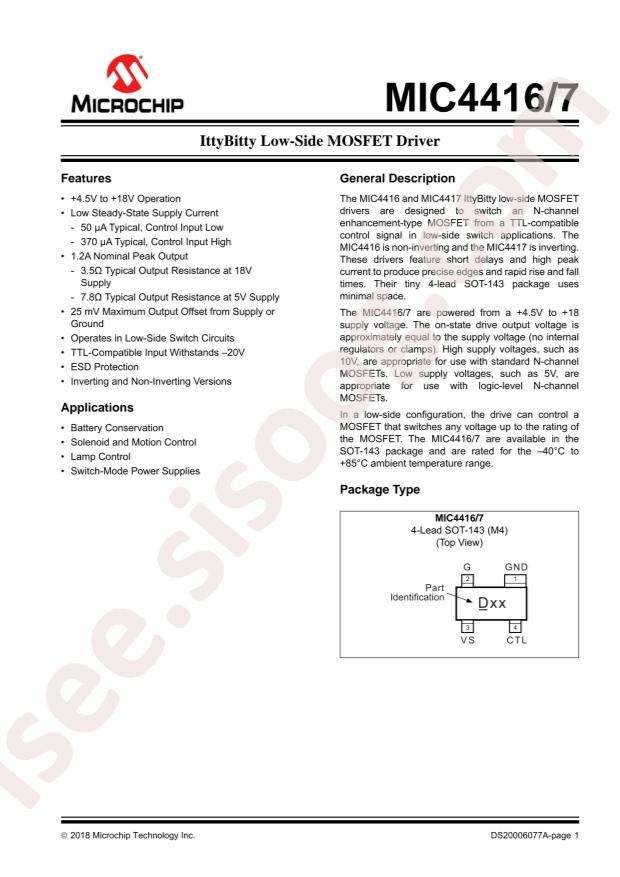

دیتاشیت MIC4416YM4-TR

MIC4416, MIC4417

مشخصات دیتاشیت

نام دیتاشیت MIC4416, MIC4417
حجم فایل 1523.263 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

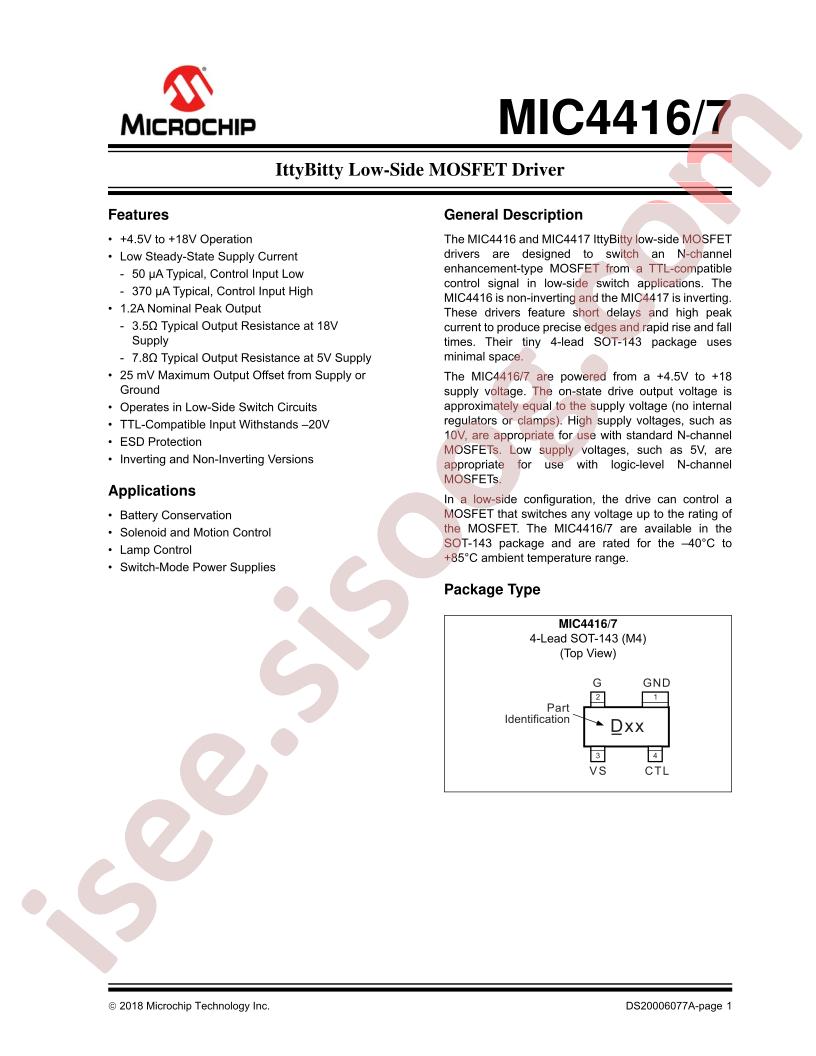

دانلود دیتاشیت MIC4416, MIC4417

MIC4416, MIC4417 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Microchip Tech MIC4416YM4-TR
  • Fall Time: 16ns
  • Load Type: MOSFET
  • Rise Time: 14ns
  • Supply Voltage: 4.5V~18V
  • Number of Drivers: 1
  • Driven Configuration: Low Side
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Peak Output Current(sink): 1.2A
  • Peak Output Current(source): 1.2A
  • Package: SOT-143
  • Manufacturer: Microchip Tech
  • Series: IttyBitty®
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Channel Type: Single
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 4.5V ~ 18V
  • Logic Voltage - VIL, VIH: 0.8V, 2.4V
  • Current - Peak Output (Source, Sink): 1.2A, 1.2A
  • Input Type: Non-Inverting
  • Rise / Fall Time (Typ): 14ns, 16ns
  • Mounting Type: Surface Mount
  • Package / Case: TO-253-4, TO-253AA
  • Supplier Device Package: SOT-143
  • Base Part Number: MIC4416
  • detail: Low-Side Gate Driver IC Non-Inverting SOT-143
