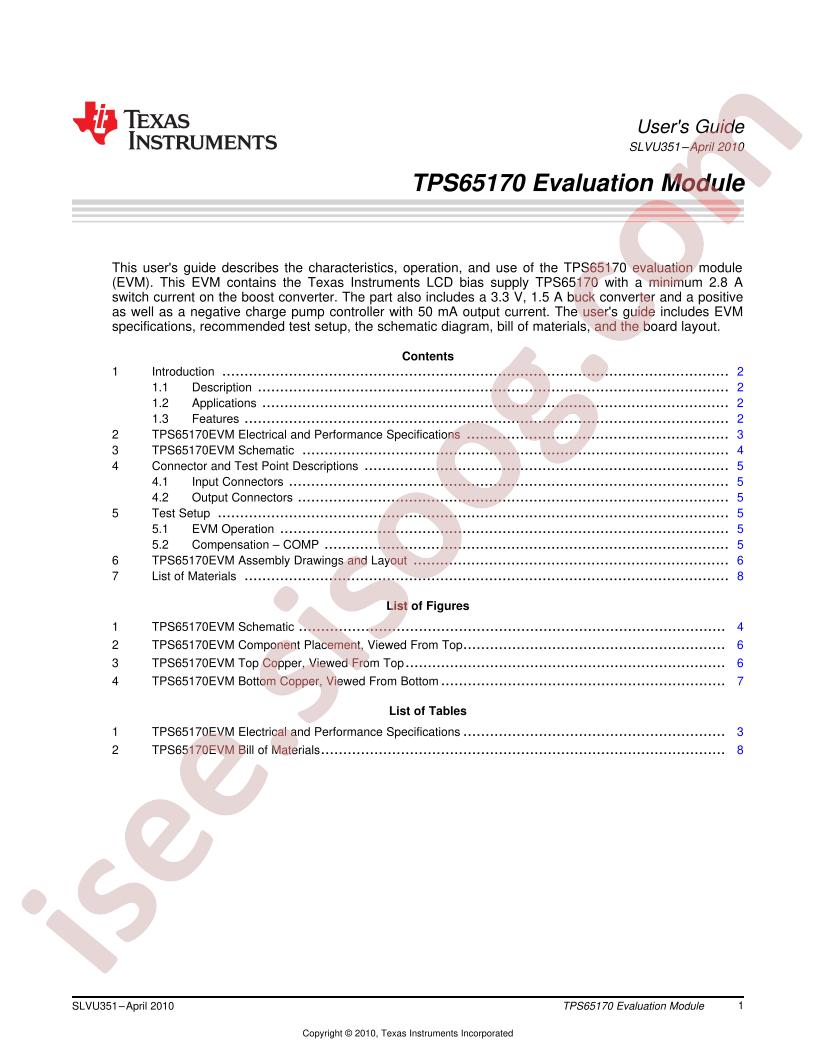

- TPS65170 Evaluation Module User Guide
TPS65170 Evaluation Module User Guide Datasheet
Datasheet specifications
| Datasheet's name | TPS65170 Evaluation Module User Guide |
|---|---|
| File size | 274.893 KB |
| File type | |
| Number of pages | 10 |
Download Datasheet TPS65170 Evaluation Module User Guide |
Download Datasheet |
|---|
Other documentations
TPS65170 37 pages
Technical specifications
- Series: -
- Board Type: Fully Populated
- Outputs and Type: 4, Non-Isolated
- Current - Output: 1.7A, 1.5A, 50mA, 50mA
- Frequency - Switching: 750kHz
- Main Purpose: Special Purpose DC/DC, LCD Supply
- Part Status: Active
- Base Part Number: TPS651
- Utilized IC / Part: TPS65170
- Voltage - Input: 8V ~ 14.7V
- Manufacturer: Texas Instruments
- Voltage - Output: 3.3V, 15.6V, 26V, -7V
- Supplied Contents: Board(s)
- Regulator Topology: Buck-Boost
- detail: TPS65170 - Special Purpose DC/DC, LCD Supply 4, Non-Isolated Outputs Evaluation Board
