SN74AHC1G02 دیتاشیت

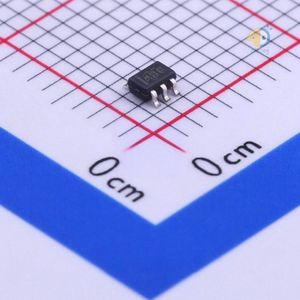

SN74AHC1G02

مشخصات دیتاشیت

نام دیتاشیت SN74AHC1G02
حجم فایل 1188.52 کیلوبایت
نوع فایل pdf
تعداد صفحات 23

دانلود دیتاشیت SN74AHC1G02

دانلود دیتاشیت

سایر مستندات

SN74AHC1G02DCKRG4 24 pages

مشخصات فنی

  • RoHS: true
  • Series: 74AHC
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74AHC1G02DRLR
  • Sink Current: 8mA
  • Source Current: 8mA
  • Supply Voltage: 2V~5.5V
  • Logic Gate Type: NORGate
  • Number of Channels: 1
  • Low Level Range (VIL): 0.5V~1.65V
  • Operating Temperature: -40°C~+85°C
  • High Level Range (VIH): 1.5V~3.85V
  • Propagation Delay Time: 7.5ns@5V,50pF
  • Quiescent Current (Max): 1uA
  • Package: SOT-5
  • Manufacturer: Texas Instruments
  • Current - Quiescent (Max): 1µA
  • Package / Case: SOT-553
  • Logic Level - High: 1.5V ~ 3.85V
  • Number of Circuits: 1
  • Number of Inputs: 2
  • Features: -
  • Current - Output High, Low: 8mA, 8mA
  • Mounting Type: Surface Mount
  • Supplier Device Package: SOT-5
  • Logic Type: NOR Gate
  • Max Propagation Delay @ V, Max CL: 7.5ns @ 5V, 50pF
  • Voltage - Supply: 2V ~ 5.5V
  • Packaging: Cut Tape (CT)
  • Base Part Number: SN74AHC1
  • Part Status: Active
  • Logic Level - Low: 0.5V ~ 1.65V
  • detail: NOR Gate IC 1 Channel SOT-5
