SN74AC14DRG4 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SN74AC14DRG4
|
|
حجم فایل
|
78.143
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
21
|
مشخصات فنی
-
RoHS:
true
-
Category:
Logic ICs/Inverters
-
Datasheet:

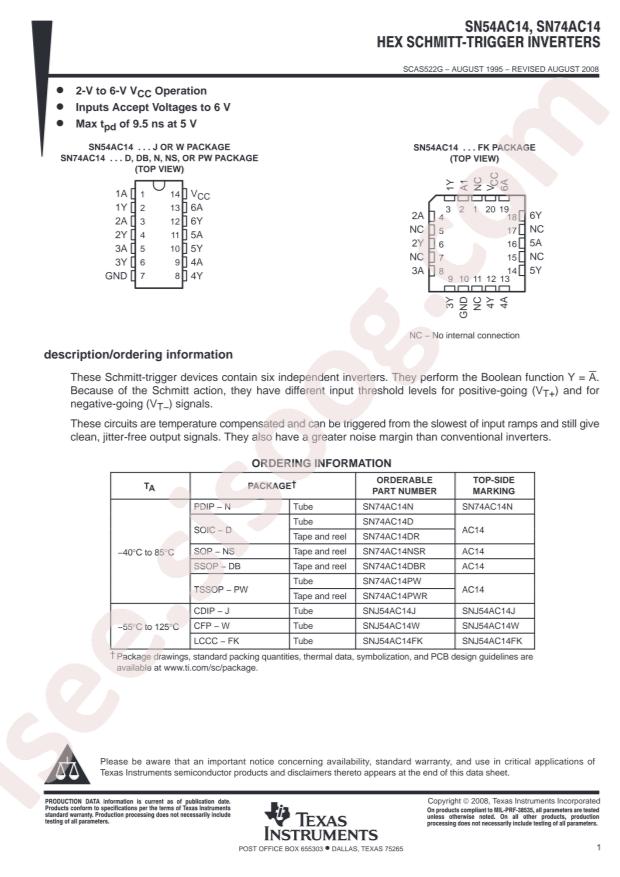

Texas Instruments SN74AC14DRG4
-
Input Type:
Schmitt Trigger
-
Sink Current:
24mA
-
Source Current:
24mA
-
Number of Circuits:
6
-
Supply Current (Max):
2uA
-
Low level range (VIL):
0.5V~1.1V
-
Max Propagation Delay:
10ns@5V,50pF
-
High level range (VIH):
2.2V~3.9V
-
Supply Voltage(Single):
2V~6V
-
Package:
SOP-14
-
Manufacturer:
Texas Instruments
-
Series:
74AC
-
Current - Quiescent (Max):
2µA
-
Package / Case:
14-SOIC (0.154", 3.90mm Width)
-
Logic Level - High:
2.2V ~ 3.9V
-
Number of Inputs:
6
-
Features:
Schmitt Trigger
-
Current - Output High, Low:
24mA, 24mA
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
14-SOIC
-
Logic Type:
Inverter
-
Operating Temperature:
-40°C ~ 85°C
-
Max Propagation Delay @ V, Max CL:
10ns @ 5V, 50pF
-
Voltage - Supply:
2V ~ 6V
-
Packaging:
Tape & Reel (TR)
-
Base Part Number:
SN74AC1
-
Part Status:
Active
-
Logic Level - Low:
0.5V ~ 1.1V
-
detail:
Inverter IC 6 Channel Schmitt Trigger 14-SOIC
