دیتاشیت SN54HC132, SN74HC132

SN54HC132, SN74HC132

مشخصات دیتاشیت

نام دیتاشیت SN54HC132, SN74HC132
حجم فایل 2079.414 کیلوبایت
نوع فایل pdf
تعداد صفحات 29

SN54HC132, SN74HC132

دانلود دیتاشیت

سایر مستندات

SN74HC132NSR 34 pages

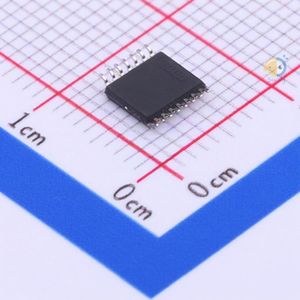

مشخصات فنی

  • RoHS: true
  • Series: 74HC
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74HC132DBR
  • Sink Current: 5.2mA
  • Source Current: 5.2mA
  • Supply Voltage: 2V~6V
  • Logic Gate Type: NAND Gates
  • Number of Channels: 4
  • Low Level Range (VIL): 0.3V~1.2V
  • Operating Temperature: -40°C~+85°C
  • High Level Range (VIH): 1.5V~4.2V
  • Propagation Delay Time: 21ns@6V,50pF
  • Quiescent Current (Max): 2uA
  • Package: SSOP-14
  • Manufacturer: Texas Instruments
  • Current - Quiescent (Max): 2µA
  • Package / Case: 14-SSOP (0.209", 5.30mm Width)
  • Logic Level - High: 1.5V ~ 4.2V
  • Number of Circuits: 4
  • Number of Inputs: 2
  • Features: Schmitt Trigger
  • Current - Output High, Low: 5.2mA, 5.2mA
  • Mounting Type: Surface Mount
  • Supplier Device Package: 14-SSOP
  • Logic Type: NAND Gate
  • Max Propagation Delay @ V, Max CL: 21ns @ 6V, 50pF
  • Voltage - Supply: 2V ~ 6V
  • Packaging: Cut Tape (CT)
  • Base Part Number: SN74HC1
  • Part Status: Active
  • Logic Level - Low: 0.3V ~ 1.2V
  • detail: NAND Gate IC 4 Channel Schmitt Trigger 14-SSOP
