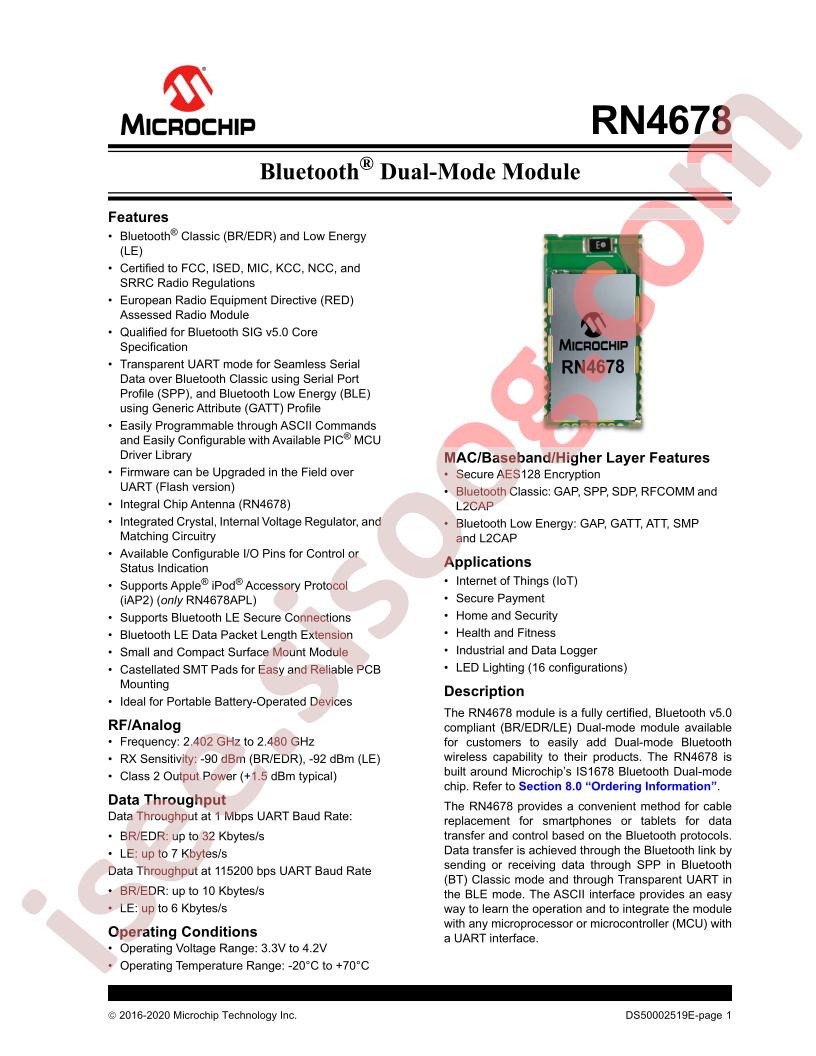

RN4678 Datasheet 数据手册
其他文档
RN4678 Guide 33 pages
RN4678 Brochure 2 pages
技术规格
- RoHS: true
- Category: IoT/Communication Modules/Bluetooth Modules
- Core IC: -
- Support Interface: UART
- Output Power (Max): 1.5dBm
- Package: -
- Manufacturer: Microchip Tech
- Series: -
- Packaging: Tray
- Part Status: Active
- RF Family/Standard: Bluetooth
- Protocol: Bluetooth v5.0
- Modulation: -
- Frequency: 2.4GHz
- Data Rate: 1Mbps
- Power - Output: 1.5dBm
- Sensitivity: -92dBm
- Serial Interfaces: UART
- Antenna Type: Integrated, Chip
- Utilized IC / Part: -
- Memory Size: 4MB Flash, 320kB ROM, 28kB SRAM
- Voltage - Supply: 3.3V ~ 4.2V
- Current - Receiving: 37mA
- Current - Transmitting: 43mA
- Mounting Type: Surface Mount
- Operating Temperature: -20°C ~ 70°C
- Package / Case: Module
- Firmware Version: 1.0.0
- Base Part Number: RN4678

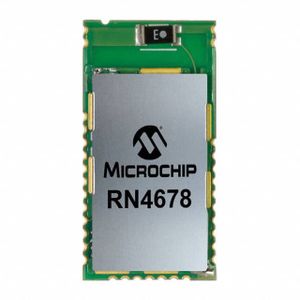

- detail: Bluetooth Bluetooth v5.0 Transceiver Module 2.4GHz Integrated, Chip Surface Mount
