SN74LVC02ANSR Datasheet

SN74LVC02ANSR

Datasheet specifications

Datasheet's name SN74LVC02ANSR
File size 100.999 KB
File type pdf
Number of pages 26

Download Datasheet SN74LVC02ANSR

Download Datasheet

Other documentations

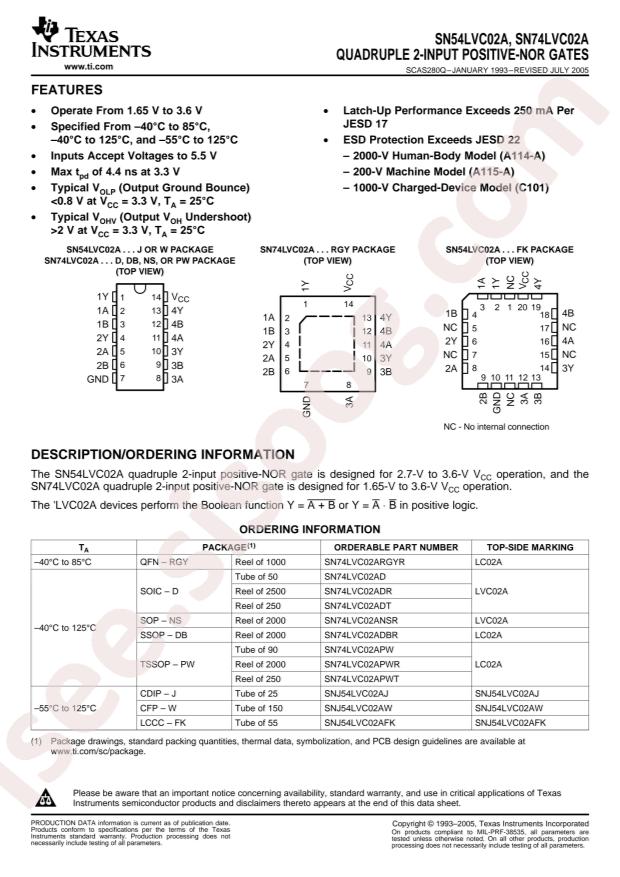

SN54LVC02A, SN74LVC02A 26 pages

Technical specifications

  • RoHS: true
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74LVC02ANSR
  • Package: SOP-14-208mil
  • Manufacturer: Texas Instruments
  • Series: 74LVC
  • Current - Quiescent (Max): 1µA
  • Package / Case: 14-SOIC (0.209", 5.30mm Width)
  • Logic Level - High: 1.7V ~ 2V
  • Number of Circuits: 4
  • Number of Inputs: 2
  • Features: -
  • Current - Output High, Low: 24mA, 24mA
  • Mounting Type: Surface Mount
  • Supplier Device Package: 14-SOP
  • Logic Type: NOR Gate
  • Operating Temperature: -40°C ~ 125°C
  • Max Propagation Delay @ V, Max CL: 4.2ns @ 3.3V, 50pF
  • Voltage - Supply: 1.65V ~ 3.6V
  • Packaging: Cut Tape (CT)
  • Base Part Number: SN74LVC02
  • Part Status: Active
  • Logic Level - Low: 0.7V ~ 0.8V
  • detail: NOR Gate IC 4 Channel 14-SOP
