دیتاشیت ATMEGA128L-8AUR
مشخصات دیتاشیت
| نام دیتاشیت | ATmega128(L) Summary |
|---|---|
| حجم فایل | 470.944 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |
دانلود دیتاشیت ATmega128(L) Summary |

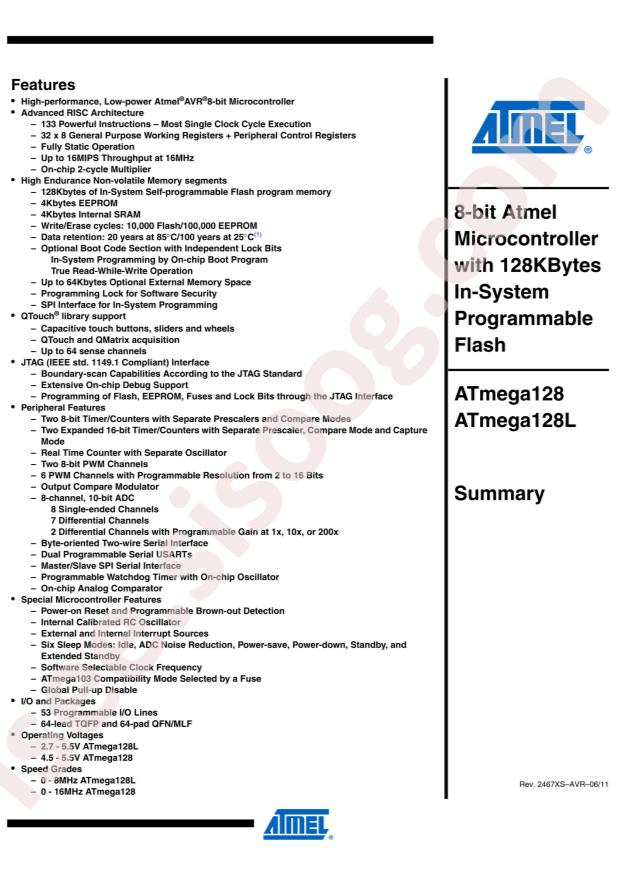

ATmega128(L) Summary Datasheet |
|---|
مشخصات
- CAN: -
- I2C: -
- I2S: -
- SPI: -
- RoHS: true
- EEPROM: -
- CPU Core: AVR
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 4KB
- Watchdog: Yes
- ADC (Bit): 10bit
- DAC (Bit): -
- Datasheet: Microchip Tech ATMEGA128L-8AUR
- PWM (Bit): -
- 8Bit Timer: -
- UART/USART: -
- 16Bit Timer: -
- 32Bit Timer: -
- Real-Time Clock: -
- CPU Maximum Speed: 8MHz
- GPIO Ports Number: 53
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: WDT
- Program Memory Type: -
- Direct Memory Access: -
- Program Storage Size: 128KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 2.7V~5.5V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: TQFP-64(14x14)
- Manufacturer: Microchip Tech
- Series: AVR® ATmega
- Packaging: Cut Tape (CT)
- Part Status: Active
- Core Processor: AVR
- Core Size: 8-Bit
- Speed: 8MHz
- Connectivity: EBI/EMI, I²C, SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
- Number of I/O: 53
- Program Memory Size: 128KB (64K x 16)
- EEPROM Size: 4K x 8
- Voltage - Supply (Vcc/Vdd): 2.7V ~ 5.5V
- Data Converters: A/D 8x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 64-TQFP
- Supplier Device Package: 64-TQFP (14x14)
- Base Part Number: ATMEGA128
- detail: AVR AVR® ATmega Microcontroller IC 8-Bit 8MHz 128KB (64K x 16) FLASH 64-TQFP (14x14)
