CD4011B,12B,23B Types دیتاشیت

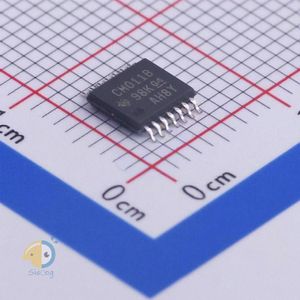

CD4011B,12B,23B Types

مشخصات دیتاشیت

نام دیتاشیت CD4011B,12B,23B Types
حجم فایل 1346.023 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

دانلود دیتاشیت CD4011B,12B,23B Types

دانلود دیتاشیت

سایر مستندات

CD4023BPWR 21 pages

مشخصات فنی

  • RoHS: true
  • Series: 4000B
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments CD4012BPWR
  • Sink Current: 3.4mA
  • Source Current: 3.4mA
  • Supply Voltage: 3V~18V
  • Logic Gate Type: NAND Gates
  • Number of Channels: 2
  • Low Level Range (VIL): 1.5V~4V
  • Operating Temperature: -55°C~+125°C
  • High Level Range (VIH): 3.5V~11V
  • Propagation Delay Time: 90ns@15V,50pF
  • Quiescent Current (Max): 1uA
  • Package: TSSOP-14
  • Manufacturer: Texas Instruments
  • Current - Quiescent (Max): 1µA
  • Package / Case: 14-TSSOP (0.173", 4.40mm Width)
  • Logic Level - High: 3.5V ~ 11V
  • Number of Circuits: 2
  • Number of Inputs: 4
  • Features: -
  • Current - Output High, Low: 3.4mA, 3.4mA
  • Mounting Type: Surface Mount
  • Supplier Device Package: 14-TSSOP
  • Logic Type: NAND Gate
  • Max Propagation Delay @ V, Max CL: 90ns @ 15V, 50pF
  • Voltage - Supply: 3V ~ 18V
  • Packaging: Cut Tape (CT)
  • Base Part Number: CD4012
  • Part Status: Active
  • Logic Level - Low: 1.5V ~ 4V
  • detail: NAND Gate IC 2 Channel 14-TSSOP
