SN74LV374ATPWR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SN74LV374ATPWR
|
|
حجم فایل
|
100.282
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
19
|
مشخصات فنی
-
RoHS:
true
-
Type:
D-Type
-
Series:
74LV
-
Category:
Logic ICs/Flip Flops
-
Datasheet:
Texas Instruments SN74LV374ATPWR
-
Output Type:
Tri-State;Non-Inverted
-
Sink Current:
16mA
-
Trigger Type:
上升沿
-
Source Current:
16mA
-
Supply Voltage:
4.5V~5.5V
-
Clock Frequency:
150MHz
-
Input Capacitance:
4pF
-
Number of Elements:
1
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Iq):
2uA
-
Maximum Propagation Delay:
10.1ns@5V,50pF
-
Number of Bits per Element:
8
-

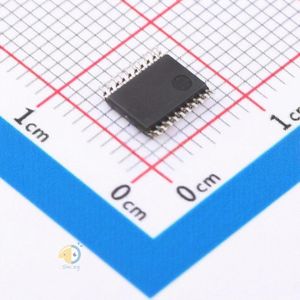

Package:
TSSOP-20
-
Manufacturer:
Texas Instruments
-
Package / Case:
20-TSSOP (0.173", 4.40mm Width)
-
Current - Output High, Low:
16mA, 16mA
-
Function:
Standard
-
Current - Quiescent (Iq):
2µA
-
Part Status:
Active
-
Mounting Type:
Surface Mount
-
Max Propagation Delay @ V, Max CL:
10.1ns @ 5V, 50pF
-
Voltage - Supply:
4.5V ~ 5.5V
-
Packaging:
Cut Tape (CT)
-
Base Part Number:
SN74LV37
-
Supplier Device Package:
20-TSSOP
-
detail:
Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-TSSOP (0.173", 4.40mm Width)
