SN74AUP2G06DCKR دیتاشیت

SN74AUP2G06DCKR

مشخصات دیتاشیت

نام دیتاشیت SN74AUP2G06DCKR
حجم فایل 97.002 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

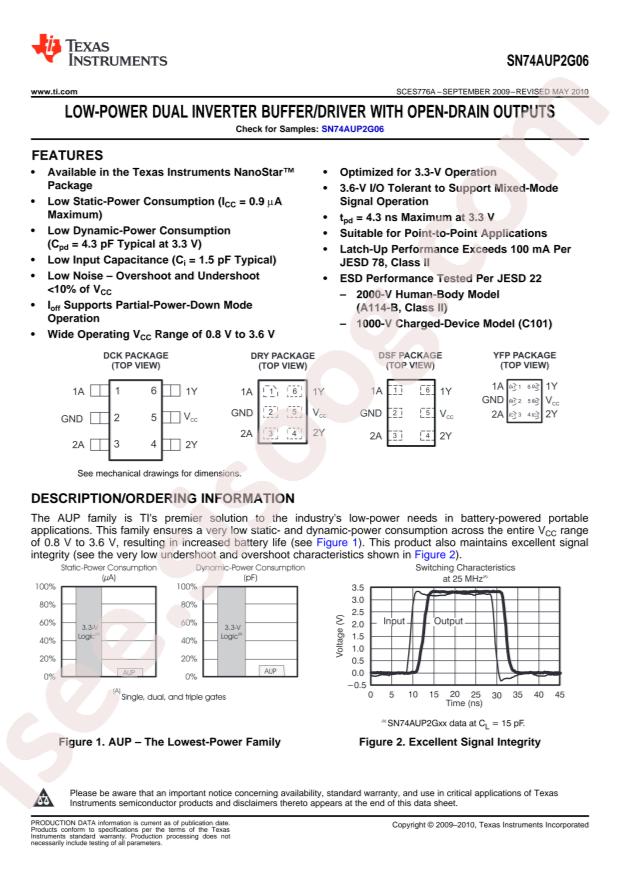

مشاهده دیتاشیت SN74AUP2G06DCKR

دانلود دیتاشیت

سایر مستندات

SN74AUP2G06 26 pages

مشخصات فنی

  • RoHS: true
  • Series: 74AUP
  • Category: Logic ICs/Inverters
  • Datasheet: Texas Instruments SN74AUP2G06DCKR
  • Sink Current: 4mA
  • Source Current: 4mA
  • Number of Inputs: 2
  • Number of Circuits: 2
  • Supply Current (Max): 500nA
  • Low level range (VIL): 0.7V~0.9V
  • Max Propagation Delay: 10.5ns@3.3V,30pF
  • Operating Temperature: -40°C~+85°C
  • High level range (VIH): 1.6V~2V
  • Supply Voltage(Single): 0.8V~3.6V
  • Package: SC-70-6
  • Manufacturer: Texas Instruments
  • Current - Quiescent (Max): 500nA
  • Package / Case: 6-TSSOP, SC-88, SOT-363
  • Logic Level - High: 1.6V ~ 2V
  • Features: Open Drain
  • Current - Output High, Low: 4mA, 4mA
  • Mounting Type: Surface Mount
  • Supplier Device Package: SC-70-6
  • Logic Type: Inverter
  • Max Propagation Delay @ V, Max CL: 10.5ns @ 3.3V, 30pF
  • Voltage - Supply: 0.8V ~ 3.6V
  • Packaging: Cut Tape (CT)
  • Base Part Number: SN74AUP
  • Part Status: Active
  • Logic Level - Low: 0.7V ~ 0.9V
  • detail: Inverter IC 2 Channel Open Drain SC-70-6
