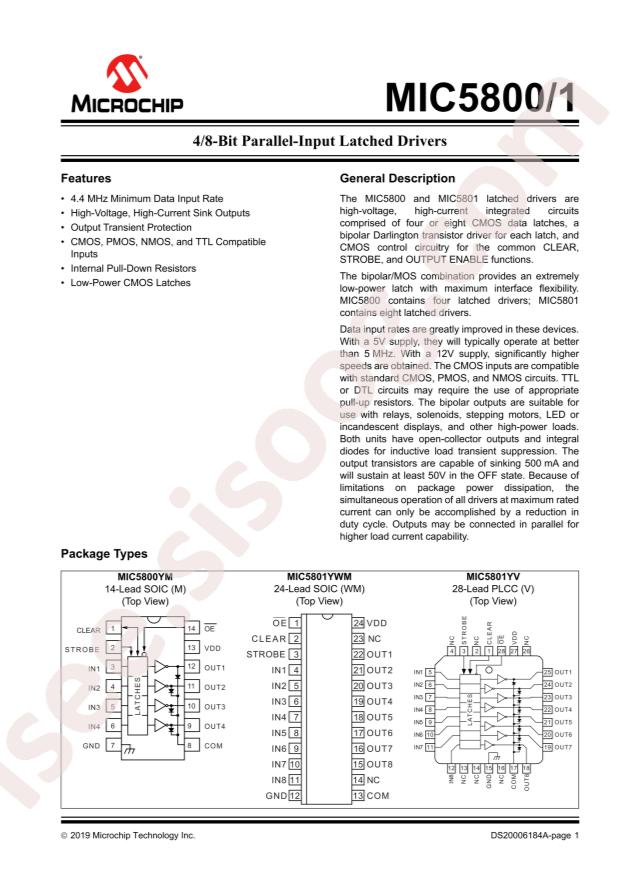

دیتاشیت MIC5801YWM-TR

MIC5800, MIC5801

مشخصات دیتاشیت

نام دیتاشیت MIC5800, MIC5801
حجم فایل 794.034 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

دانلود دیتاشیت MIC5800, MIC5801

MIC5800, MIC5801 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: Microchip Tech MIC5801YWM-TR
  • Package: SOP-24-300mil
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Switch Type: Latched Driver
  • Number of Outputs: 8
  • Ratio - Input:Output: 1:1
  • Output Configuration: Low Side
  • Output Type: Bipolar
  • Interface: Strobe, Parallel
  • Voltage - Load: 50V (Max)
  • Voltage - Supply (Vcc/Vdd): -
  • Current - Output (Max): 500mA
  • Rds On (Typ): -
  • Input Type: -
  • Features: -
  • Fault Protection: -
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 24-SOIC
  • Package / Case: 24-SOIC (0.295", 7.50mm Width)
  • Base Part Number: MIC5801
  • detail: Power Switch/Driver 1:1 Bipolar 500mA 24-SOIC
