دیتاشیت LP5907SNX-1.2/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LP5907 Datasheet |
|---|---|
| حجم فایل | 2224.203 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 47 |

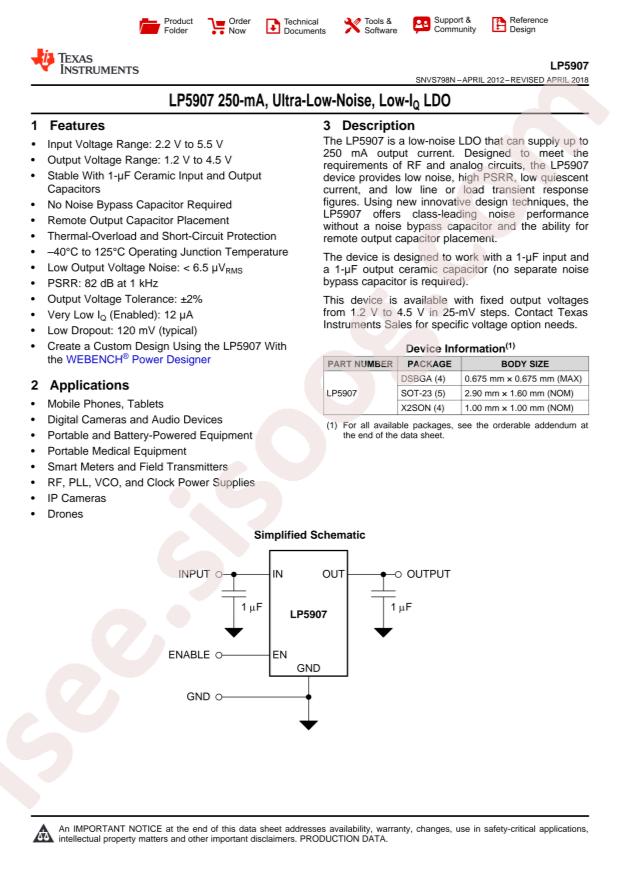

دانلود دیتاشیت LP5907 Datasheet |
LP5907 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LP5907SNX-1.2/NOPB
- Output Type: Fixed
- Output Current: 250mA
- Output Voltage: 1.2V
- Dropout Voltage: 250mV@(250mA)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 5.5V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 25uA
- Power Supply Rejection Ratio (PSRR): 90dB@(100Hz),60dB@(100kHz)
- Package: X2-SON-4(1x1)
- Manufacturer: Texas Instruments
- Voltage Dropout (Max): 0.25V @ 250mA
- Current - Supply (Max): 425µA
- Current - Output: 250mA
- Current - Quiescent (Iq): 25µA
- Voltage - Input (Max): 5.5V
- Base Part Number: LP5907
- Package / Case: 4-XDFN Exposed Pad
- Voltage - Output (Max): -
- Output Configuration: Positive
- Series: -
- Supplier Device Package: 4-X2SON (1x1)
- PSRR: 90dB ~ 60dB (100Hz ~ 100kHz)
- Part Status: Active
- Mounting Type: Surface Mount
- Control Features: Enable
- Protection Features: Over Temperature, Short Circuit
- Voltage - Output (Min/Fixed): 1.2V
- Number of Regulators: 1
- Packaging: Cut Tape (CT)
- detail: Linear Voltage Regulator IC 1 Output 250mA 4-X2SON (1x1)
