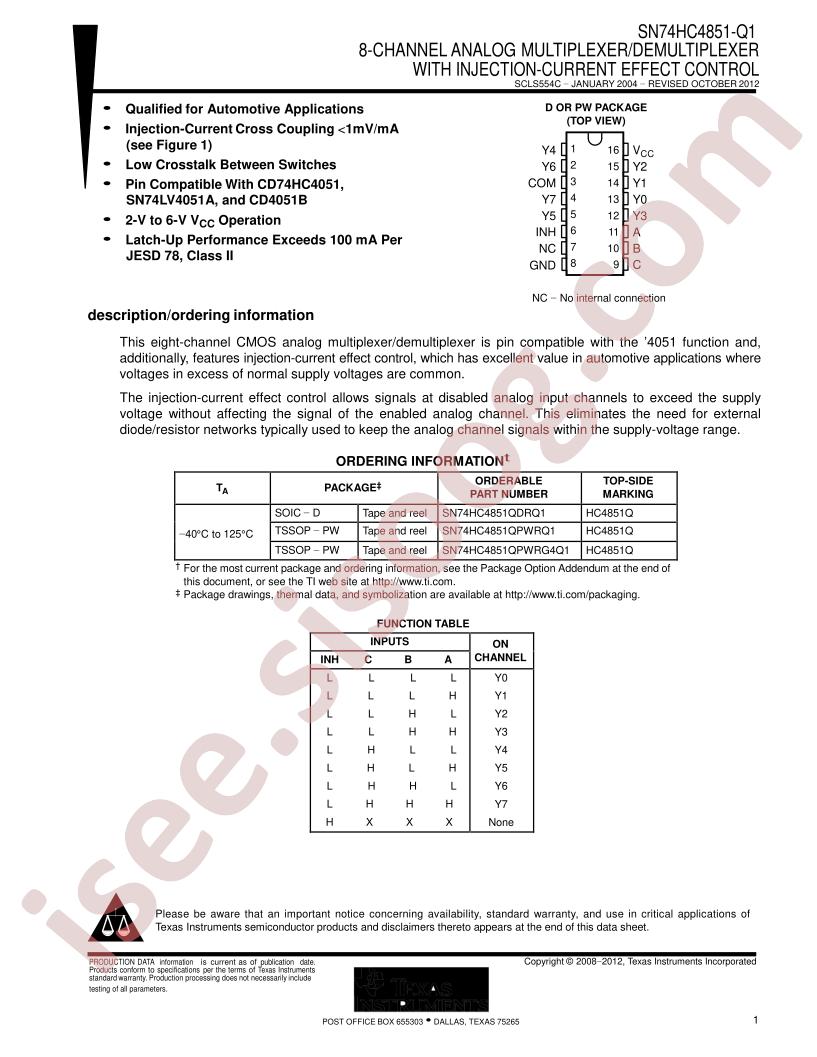

دیتاشیت SN74HC4851QDRQ1
مشخصات دیتاشیت
| نام دیتاشیت |
SN74HC4851-Q1
|
| حجم فایل |
1013.837
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
21
|
مشخصات
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
-
Datasheet:
Texas Instruments SN74HC4851QDRQ1
-
Turn-on time:
78ns
-
Turn-off time:
78ns
-
Supply Voltage:
2V~6V
-
Number of Channels:
1
-
On-State Resistance (Max):
195Ω
-
Package:
SOP-16
-
Manufacturer:
Texas Instruments
-
Switch Circuit:
-
-
Charge Injection:
-
-
Voltage - Supply, Dual (V±):
-
-
Crosstalk:
-
-
Base Part Number:
SN74HC4
-
Operating Temperature:
-40°C ~ 125°C (TA)
-
Switch Time (Ton, Toff) (Max):
78ns, 78ns
-
Multiplexer/Demultiplexer Circuit:
8:1
-
Package / Case:
16-SOIC (0.154", 3.90mm Width)
-
Channel Capacitance (CS(off), CD(off)):
22pF
-
Channel-to-Channel Matching (ΔRon):
3Ohm
-
Supplier Device Package:
16-SOIC
-
Series:
Automotive, AEC-Q100
-
Current - Leakage (IS(off)) (Max):
200nA
-
Number of Circuits:
1
-
Part Status:
Active
-
Mounting Type:
Surface Mount
-
Voltage - Supply, Single (V+):
2V ~ 6V
-
-3db Bandwidth:
-
-
Packaging:
Digi-Reel®
-
detail:
1 Circuit IC Switch 8:1 195Ohm 16-SOIC
