AD7533JPZ دیتاشیت

AD7533JPZ

مشخصات دیتاشیت

نام دیتاشیت AD7533JPZ
حجم فایل 62.006 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت AD7533JPZ

دانلود دیتاشیت

سایر مستندات

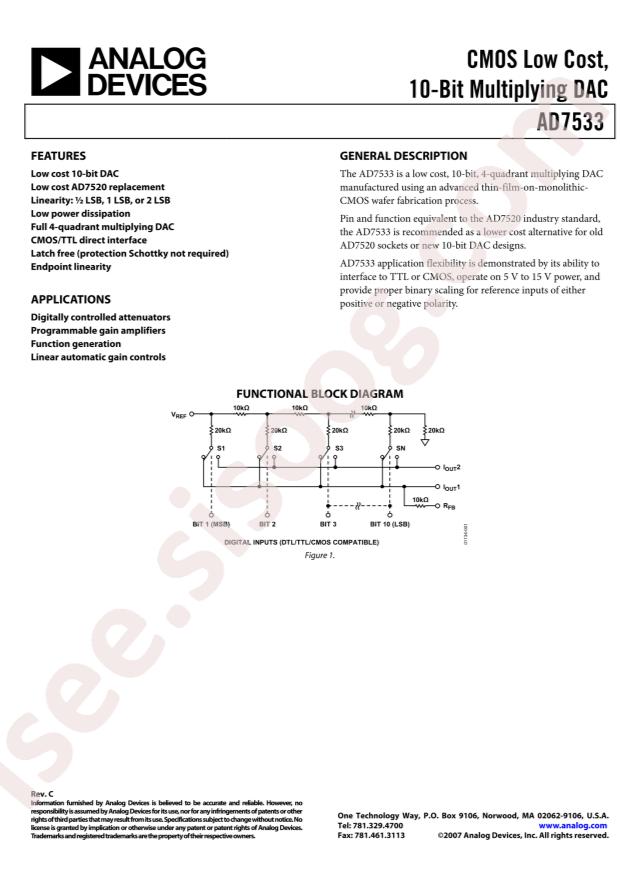

AD7533 12 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices AD7533JPZ
  • Interface: Parallel
  • Resolution: 10Bit
  • Output Type: Current-非缓冲
  • Settling Time: 800ns
  • Supply Voltage: 5V~15V
  • Integral nonlinearity: ±1LSB
  • Operating Temperature: -40°C~+85°C
  • Package: PLCC-20
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Number of Bits: 10
  • Number of D/A Converters: 1
  • Differential Output: Yes
  • Data Interface: Parallel
  • Reference Type: External
  • Voltage - Supply, Analog: 5V ~ 15V
  • Voltage - Supply, Digital: 5V ~ 15V
  • INL/DNL (LSB): -, ±1 (Max)
  • Architecture: R-2R
  • Package / Case: 20-LCC (J-Lead)
  • Supplier Device Package: 20-PLCC (9x9)
  • Mounting Type: Surface Mount
  • Base Part Number: AD7533
  • detail: 10 Bit Digital to Analog Converter 1 20-PLCC (9x9)
