دیتاشیت MCP47A1T-A0E/LT

MCP47A1

مشخصات دیتاشیت

نام دیتاشیت MCP47A1
حجم فایل 1863.389 کیلوبایت
نوع فایل pdf
تعداد صفحات 70

دانلود دیتاشیت MCP47A1

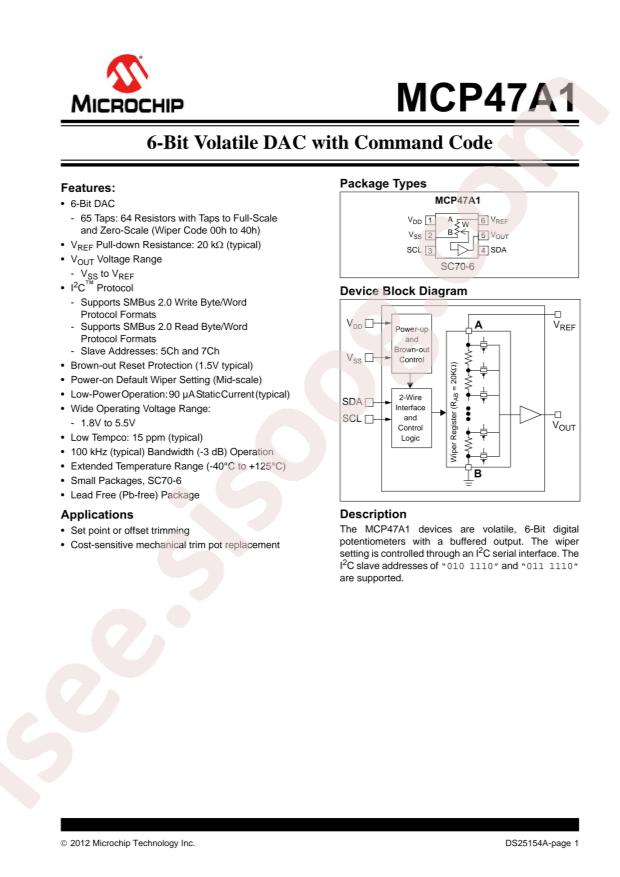

MCP47A1 Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Microchip Tech MCP47A1T-A0E/LT
  • Interface: I2C
  • Resolution: 6Bit
  • Output Type: Voltage-缓冲
  • Settling Time: 15us
  • Supply Voltage: 1.8V~5.5V
  • Integral nonlinearity: ±0.25LSB
  • Operating Temperature: -40°C~+125°C
  • Package: SC-70-6
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Number of Bits: 6
  • Number of D/A Converters: 1
  • Differential Output: No
  • Data Interface: I²C
  • Reference Type: External
  • Voltage - Supply, Analog: 2.7V ~ 5.5V
  • Voltage - Supply, Digital: 1.8V ~ 5.5V
  • INL/DNL (LSB): ±0.25, ±0.25
  • Architecture: R-2R
  • Package / Case: 6-TSSOP, SC-88, SOT-363
  • Supplier Device Package: SC-70-6
  • Mounting Type: Surface Mount
  • Base Part Number: MCP47A1
  • detail: 6 Bit Digital to Analog Converter 1 SC-70-6
