TMP815PWR دیتاشیت

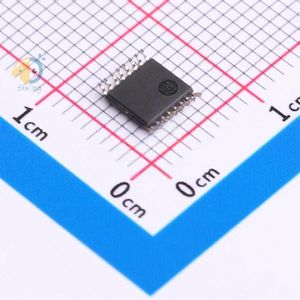

TMP815PWR

مشخصات دیتاشیت

نام دیتاشیت TMP815PWR
حجم فایل 87.575 کیلوبایت
نوع فایل pdf
تعداد صفحات 21

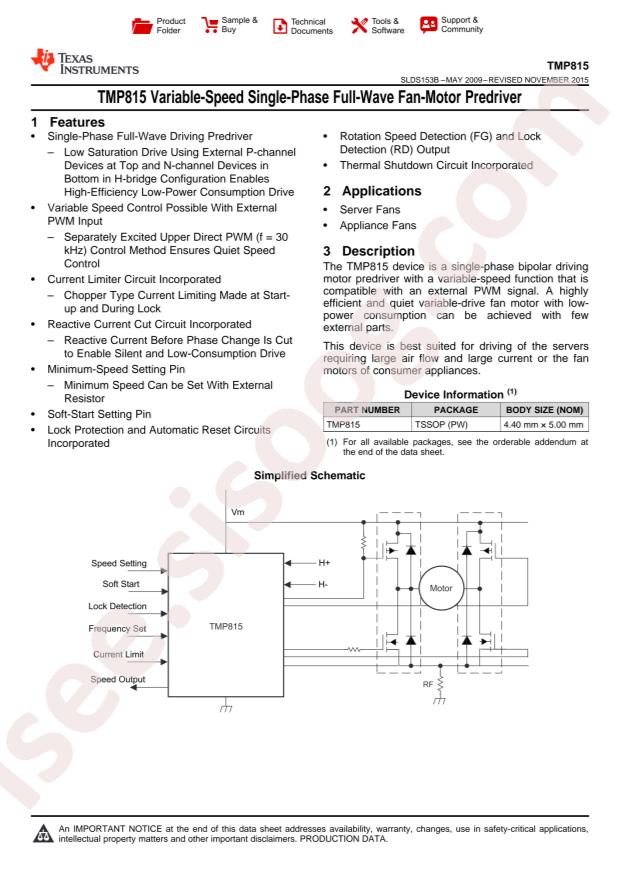

مشاهده دیتاشیت TMP815PWR

دانلود دیتاشیت

سایر مستندات

TMP815 21 pages

مشخصات فنی

  • RoHS: true
  • Type: Brush DC Motor
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: Texas Instruments TMP815PWR
  • Interface: PWM
  • Output Current: -
  • Supply Voltage: 6V~16V
  • Operating Temperature: -30°C~+95°C@(Ta)
  • Package: TSSOP-16
  • Manufacturer: Texas Instruments
  • Series: -
  • Technology: Power MOSFET
  • Package / Case: 16-TSSOP (0.173", 4.40mm Width)
  • Function: Controller - Commutation, Direction Management
  • Current - Output: -
  • Part Status: Active
  • Base Part Number: TMP815
  • Mounting Type: Surface Mount
  • Motor Type - Stepper: -
  • Applications: Fan Controller
  • Motor Type - AC, DC: Brushed DC
  • Voltage - Supply: 6V ~ 16V
  • Step Resolution: -
  • Packaging: Cut Tape (CT)
  • Output Configuration: Pre-Driver - Half Bridge (2)
  • Voltage - Load: -
  • Supplier Device Package: 16-TSSOP
  • detail: Motor Driver Power MOSFET PWM 16-TSSOP
