دیتاشیت HV2621/R4X
مشخصات دیتاشیت
| نام دیتاشیت | HV2621/R4X |
|---|---|
| حجم فایل | 93.843 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 26 |
HV2621/R4X |
دانلود دیتاشیت |
|---|
سایر مستندات

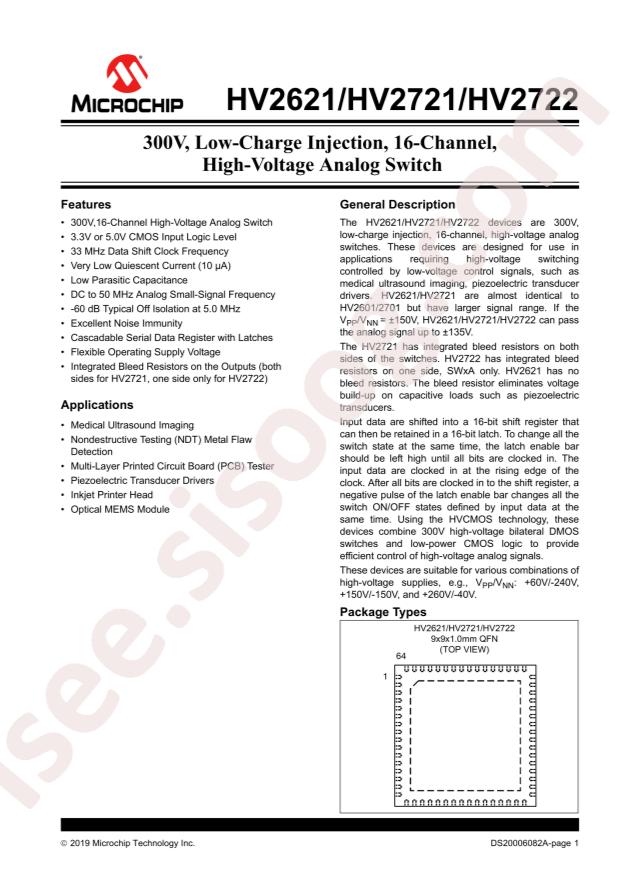

HV2621, HV2721, HV2722 26 pages
مشخصات فنی
- RoHS: true
- Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet: Microchip Tech HV2621/R4X
- Package: QFN-64-EP(9x9)
- Manufacturer: Microchip Tech
- Series: -
- Packaging: Tray
- Part Status: Active
- Switch Circuit: SPST
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 1
- On-State Resistance (Max): 30Ohm
- Channel-to-Channel Matching (ΔRon): 1.5Ohm
- Voltage - Supply, Single (V+): 3V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 6µs, 6µs
- -3db Bandwidth: -
- Charge Injection: 1000pC
- Channel Capacitance (CS(off), CD(off)): 10pF
- Current - Leakage (IS(off)) (Max): 15µA
- Crosstalk: -70dB @ 5MHz
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 64-VFQFN Exposed Pad
- Supplier Device Package: 64-VQFN (9x9)
- detail: 1 Circuit IC Switch 1:1 30Ohm 64-VQFN (9x9)
