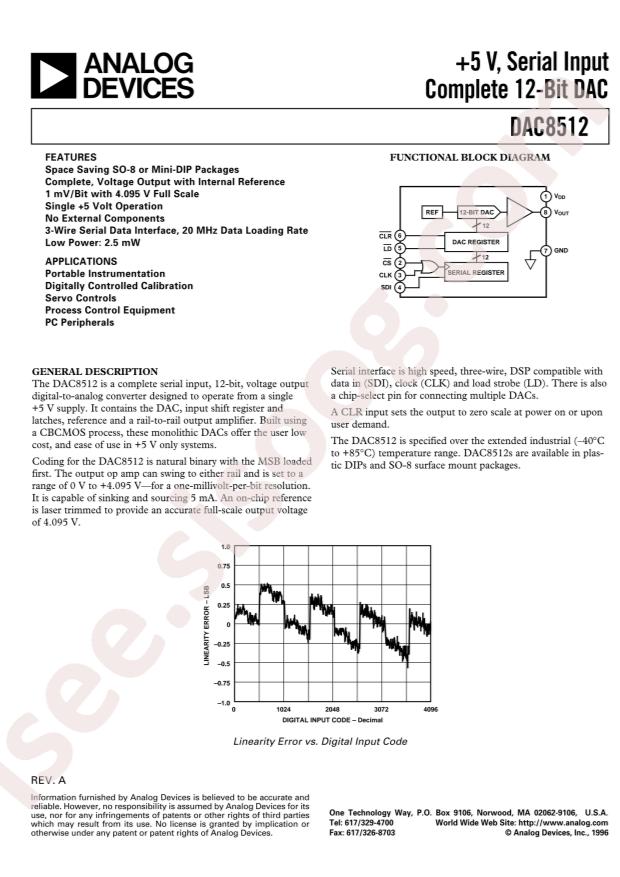

DAC8512FPZ دیتاشیت

DAC8512FPZ

مشخصات دیتاشیت

نام دیتاشیت DAC8512FPZ
حجم فایل 84.904 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

دانلود دیتاشیت DAC8512FPZ

دانلود دیتاشیت

سایر مستندات

DAC8512 20 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices DAC8512FPZ
  • Interface: SPI;DSP
  • Resolution: 12Bit
  • Output Type: Voltage-缓冲
  • Settling Time: 16us
  • Supply Voltage: 5V
  • Integral nonlinearity: ±0.75LSB
  • Operating Temperature: -40°C~+85°C
  • Package: PDIP-8
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Number of Bits: 12
  • Number of D/A Converters: 1
  • Differential Output: No
  • Data Interface: SPI, DSP
  • Reference Type: Internal
  • Voltage - Supply, Analog: 5V
  • Voltage - Supply, Digital: 5V
  • INL/DNL (LSB): ±0.75, ±0.75
  • Architecture: R-2R
  • Package / Case: 8-DIP (0.300", 7.62mm)
  • Supplier Device Package: 8-PDIP
  • Mounting Type: Through Hole
  • Base Part Number: DAC8512
  • detail: 12 Bit Digital to Analog Converter 1 8-PDIP
