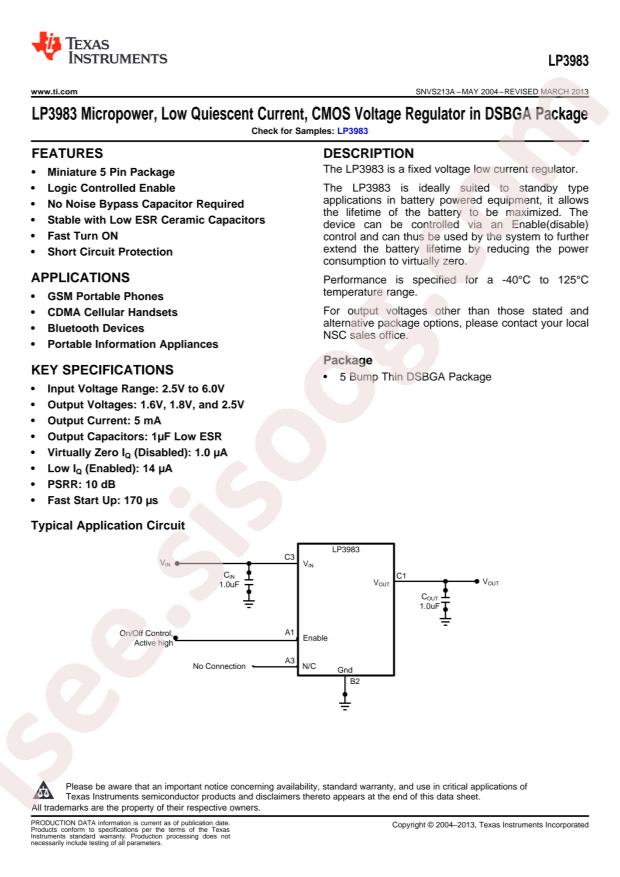

دیتاشیت LP3983ITL-2.5/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LP3983 |
|---|---|
| حجم فایل | 857.194 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 15 |
دانلود دیتاشیت LP3983 |
LP3983 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LP3983ITL-2.5/NOPB
- Output Current: 5mA
- Output Voltage: 2.5V
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 6V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 3uA
- Power Supply Rejection Ratio (PSRR): 10dB@(10kHz)
- Package: BGA-5
- Manufacturer: Texas Instruments
- Voltage Dropout (Max): -
- Current - Supply (Max): 21µA
- Current - Output: 5mA
- Current - Quiescent (Iq): 3µA
- Voltage - Input (Max): 6V
- Base Part Number: LP3983
- Package / Case: 5-WFBGA, DSBGA
- Voltage - Output (Max): -
- Output Configuration: Positive
- Series: -
- Supplier Device Package: 5-DSBGA (1.41x1.08)
- PSRR: 10dB (10kHz)
- Part Status: Active
- Mounting Type: Surface Mount
- Control Features: Enable
- Protection Features: Short Circuit
- Voltage - Output (Min/Fixed): 2.5V
- Number of Regulators: 1
- Packaging: Cut Tape (CT)
- Output Type: Fixed
- detail: Linear Voltage Regulator IC 1 Output 5mA 5-DSBGA (1.41x1.08)
