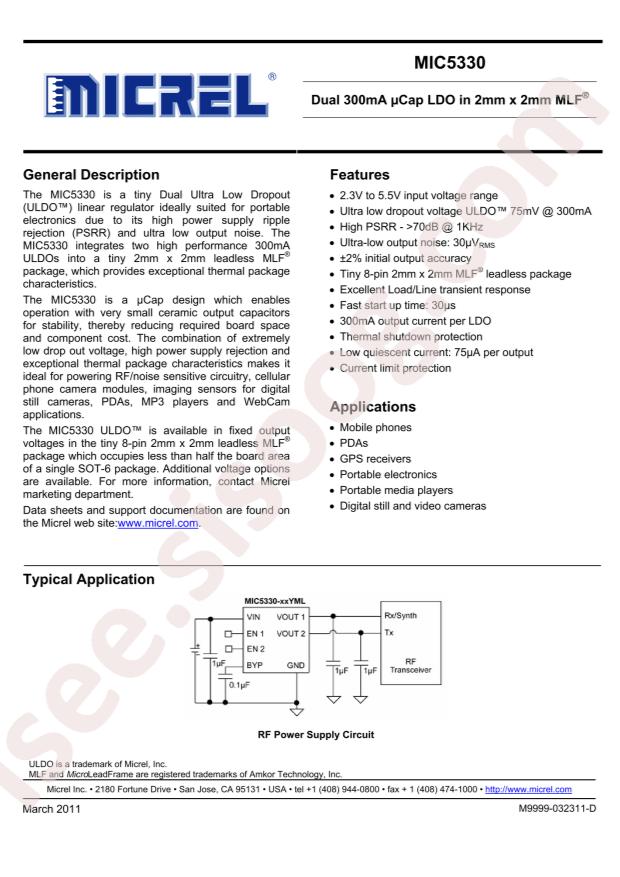

دیتاشیت MIC5330-SSYML-TR
مشخصات دیتاشیت
| نام دیتاشیت |
MIC5330
|
| حجم فایل |
388.596
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
10
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Microchip Tech MIC5330-SSYML-TR
-
Output Type:
Fixed
-
Output Current:
300mA
-
Output Voltage:
3.3V
-
Dropout Voltage:
200mV@(300mA)
-
Output Polarity:
Positive
-
Number of Outputs:
2
-
Maximum Input Voltage:
5.5V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
120uA
-
Power Supply Rejection Ratio (PSRR):
70dB@(1kHz),65dB@(20kHz)
-
Package:
MLF-8
-
Manufacturer:
Microchip Tech
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
2
-
Voltage - Input (Max):
5.5V
-
Voltage - Output (Min/Fixed):
3.3V, 3.3V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
0.2V @ 300mA, 0.2V @ 300mA
-
Current - Output:
300mA, 300mA
-
Current - Quiescent (Iq):
120µA
-
Current - Supply (Max):
200µA
-
PSRR:
70dB ~ 65dB (1kHz ~ 20kHz)
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature
-
Mounting Type:
Surface Mount
-
Package / Case:
8-VFDFN Exposed Pad, 8-MLF®
-
Supplier Device Package:
8-MLF® (2x2)
-
Base Part Number:
MIC5330
-
detail:
Linear Voltage Regulator IC 2 Output 300mA, 300mA 8-MLF® (2x2)
