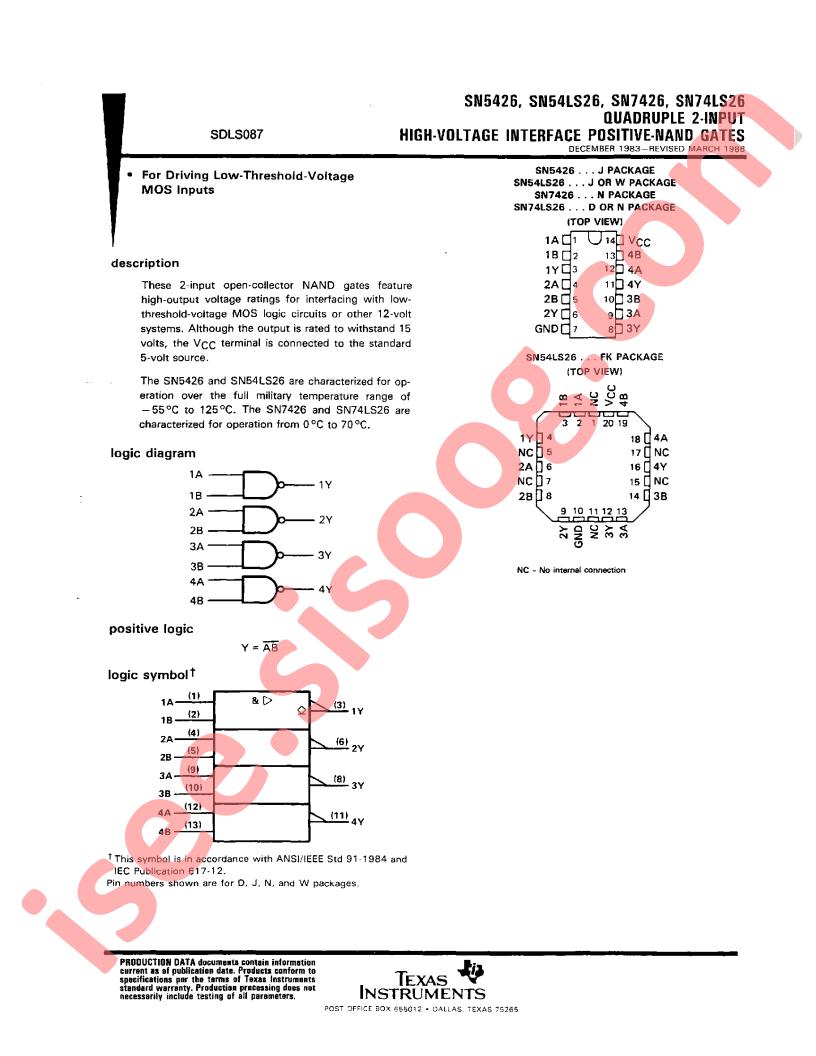

دیتاشیت SN74LS26DR
مشخصات دیتاشیت
| نام دیتاشیت |
SN54/74(LS)26
|
| حجم فایل |
788.971
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
14
|
مشخصات
-
RoHS:
true
-
Series:
74LS
-
Category:
Logic ICs/Gates
-
Datasheet:
Texas Instruments SN74LS26DR
-
Sink Current:
8mA
-
Supply Voltage:
4.75V~5.25V
-
Logic Gate Type:
NAND Gates
-
Number of Channels:
4
-
Low Level Range (VIL):
0.8V
-
Operating Temperature:
0°C~+70°C
-
High Level Range (VIH):
2V
-
Propagation Delay Time:
32ns@5V,15pF
-
Package:
SOIC-14
-
Manufacturer:
Texas Instruments
-
Package / Case:
14-SOIC (0.154", 3.90mm Width)
-
Logic Level - High:
2V
-
Number of Circuits:
4
-
Number of Inputs:
2
-
Features:
Open Collector
-
Current - Output High, Low:
-, 8mA
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
14-SOIC
-
Logic Type:
NAND Gate
-
Max Propagation Delay @ V, Max CL:
32ns @ 5V, 15pF
-
Voltage - Supply:
4.75V ~ 5.25V
-
Packaging:
Cut Tape (CT)
-
Base Part Number:
SN74LS26
-
Part Status:
Active
-
Logic Level - Low:
0.8V
-
detail:
NAND Gate IC 4 Channel Open Collector 14-SOIC
