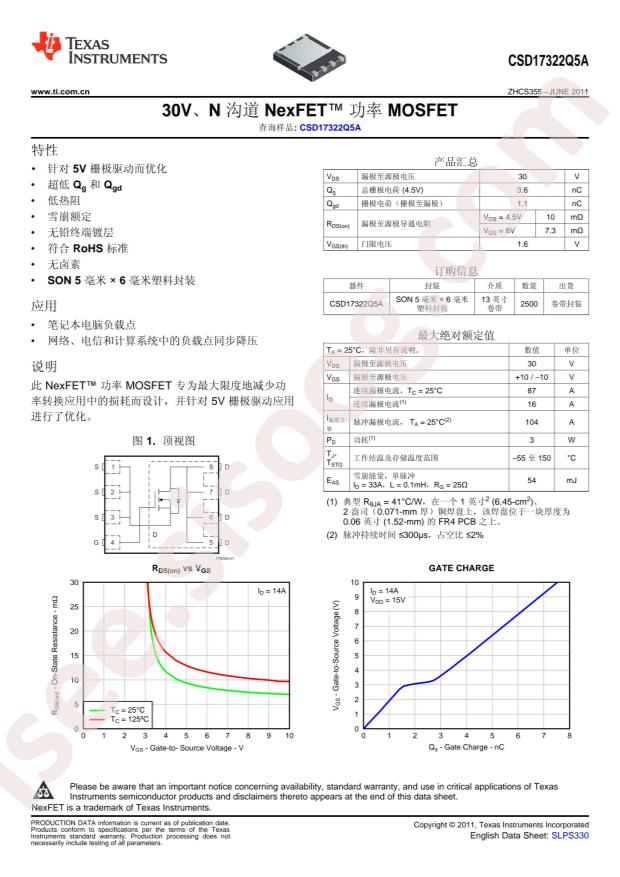

CSD17322Q5A دیتاشیت

CSD17322Q5A

مشخصات دیتاشیت

نام دیتاشیت CSD17322Q5A
حجم فایل 81.775 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

مشاهده دیتاشیت CSD17322Q5A

دانلود دیتاشیت

سایر مستندات

CSD17322Q5A 9 pages

CSD17322Q5A 11 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: Texas Instruments CSD17322Q5A
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 3W
  • Total Gate Charge (Qg@Vgs): 4.3nC@4.5V
  • Drain Source Voltage (Vdss): 30V
  • Input Capacitance (Ciss@Vds): 695pF@15V
  • Continuous Drain Current (Id): 87A
  • Gate Threshold Voltage (Vgs(th)@Id): 2V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 8.8mΩ@14A,8V
  • Package: VSONP-8
  • Manufacturer: Texas Instruments
  • Series: NexFET™
  • Technology: MOSFET (Metal Oxide)
  • Rds On (Max) @ Id, Vgs: 8.8mOhm @ 14A, 8V
  • Supplier Device Package: 8-VSONP (5x6)
  • Package / Case: 8-PowerTDFN
  • Packaging: Cut Tape (CT)
  • FET Feature: -
  • Vgs (Max): ±10V
  • Part Status: Active
  • Gate Charge (Qg) (Max) @ Vgs: 4.3nC @ 4.5V
  • Mounting Type: Surface Mount
  • Current - Continuous Drain (Id) @ 25°C: 87A (Tc)
  • Input Capacitance (Ciss) (Max) @ Vds: 695pF @ 15V
  • Drain to Source Voltage (Vdss): 30V
  • Vgs(th) (Max) @ Id: 2V @ 250µA
  • Power Dissipation (Max): 3W (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 8V
  • Base Part Number: CSD173
  • FET Type: N-Channel
  • detail: N-Channel 30V 87A (Tc) 3W (Ta) Surface Mount 8-VSONP (5x6)
