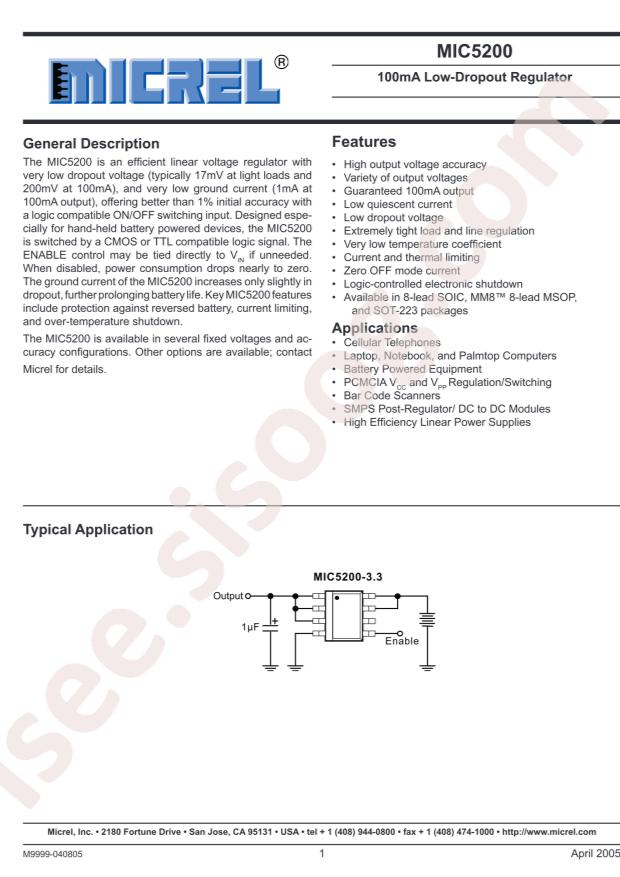

دیتاشیت MIC5200-5.0YS-TR
مشخصات دیتاشیت
| نام دیتاشیت |
MIC5200
|
| حجم فایل |
1667.516
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
24
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Microchip Tech MIC5200-5.0YS-TR
-
Output Type:
Fixed
-
Output Current:
100mA
-
Output Voltage:
5V
-
Dropout Voltage:
350mV@(100mA)
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
26V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
350uA
-
Power Supply Rejection Ratio (PSRR):
-
-
Package:
SOT-223
-
Manufacturer:
Microchip Tech
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
26V
-
Voltage - Output (Min/Fixed):
5V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
0.35V @ 100mA
-
Current - Output:
100mA
-
Current - Quiescent (Iq):
350µA
-
Current - Supply (Max):
1.5mA
-
PSRR:
-
-
Control Features:
-
-
Protection Features:
Over Current, Over Temperature
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-261-4, TO-261AA
-
Supplier Device Package:
SOT-223-3
-
Base Part Number:
MIC5200
-
detail:
Linear Voltage Regulator IC 1 Output 100mA SOT-223-3
