NE5532APSRE4 Datasheet

NE5532(A), SA5532(A) Datasheet

Datasheet specifications

Datasheet's name NE5532(A), SA5532(A) Datasheet
File size 1120.98 KB
File type pdf
Number of pages 24

Download Datasheet NE5532(A), SA5532(A) Datasheet

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Series: -
  • Package / Case: 8-SOIC (0.209", 5.30mm Width)
  • Number of Circuits: 2
  • Current - Supply: 8mA
  • Voltage - Input Offset: 500µV
  • Mounting Type: Surface Mount
  • Part Status: Active
  • Slew Rate: 9V/µs
  • Voltage - Supply, Single/Dual (±): ±5V ~ 15V
  • Gain Bandwidth Product: 10MHz
  • Operating Temperature: 0°C ~ 70°C
  • Amplifier Type: General Purpose
  • Manufacturer: Texas Instruments
  • Current - Output / Channel: 38mA
  • Packaging: Tape & Reel (TR)
  • Base Part Number: NE5532
  • Current - Input Bias: 200nA
  • Output Type: -
  • Supplier Device Package: 8-SO
  • detail: General Purpose Amplifier 2 Circuit 8-SO

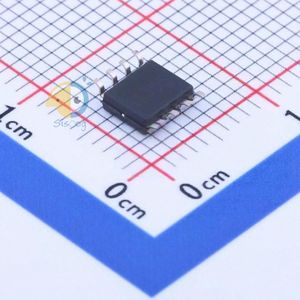

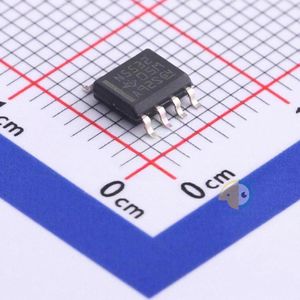

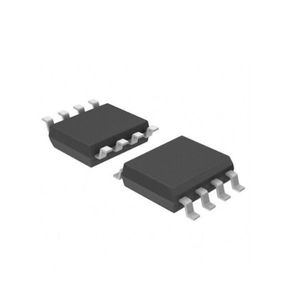

Similar products
