دیتاشیت TN0104N3-G

TN0104

مشخصات دیتاشیت

نام دیتاشیت TN0104
حجم فایل 367.555 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

دانلود دیتاشیت TN0104

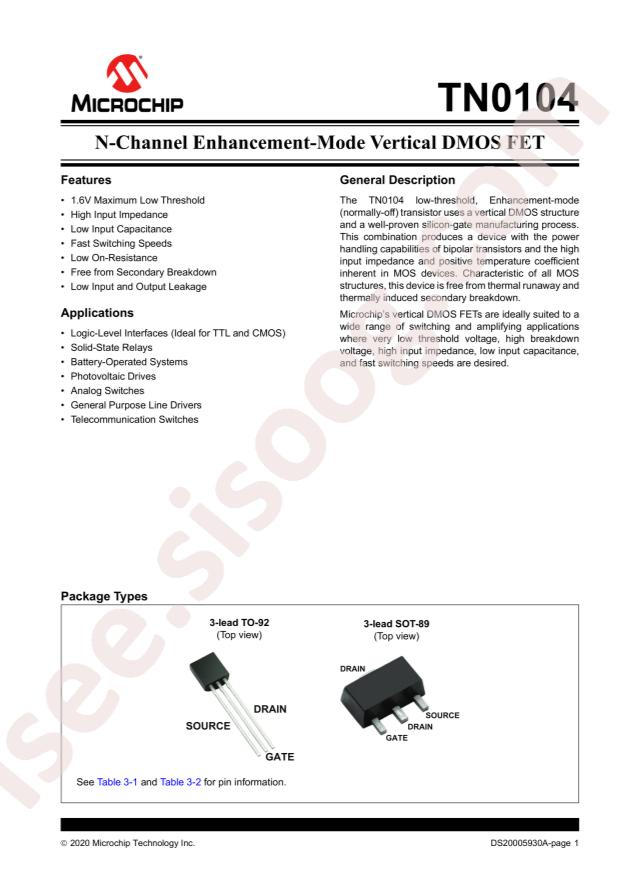

TN0104 Datasheet

مشخصات

  • Manufacturer: Microchip Technology
  • Series: -
  • Packaging: Bulk
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 40V
  • Current - Continuous Drain (Id) @ 25°C: 450mA (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 3V, 10V
  • Rds On (Max) @ Id, Vgs: 1.8Ohm @ 1A, 10V
  • Vgs(th) (Max) @ Id: 1.6V @ 500µA
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 70pF @ 20V
  • FET Feature: -
  • Power Dissipation (Max): 1W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-92-3
  • Package / Case: TO-226-3, TO-92-3 (TO-226AA)
  • detail: N-Channel 40V 450mA (Ta) 1W (Tc) Through Hole TO-92-3
