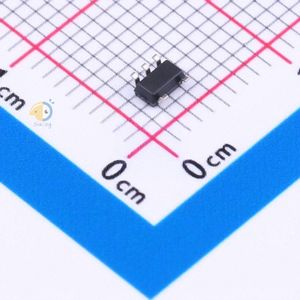

OPA342NA/3KG4 Datasheet

OPA342, 2342, 4342 Datasheet

Datasheet specifications

Datasheet's name OPA342, 2342, 4342 Datasheet
File size 925.569 KB
File type pdf
Number of pages 15

Download Datasheet OPA342, 2342, 4342 Datasheet

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Series: MicroAmplifier™
  • Package / Case: SC-74A, SOT-753
  • Number of Circuits: 1
  • Current - Supply: 150µA
  • Voltage - Input Offset: 1mV
  • Mounting Type: Surface Mount
  • Part Status: Active
  • Slew Rate: 1V/µs
  • Voltage - Supply, Single/Dual (±): 2.7V ~ 5.5V, ±1.35V ~ 2.75V
  • Gain Bandwidth Product: 1MHz
  • Operating Temperature: -40°C ~ 85°C
  • Amplifier Type: General Purpose
  • Manufacturer: Texas Instruments
  • Current - Output / Channel: 15mA
  • Packaging: Tape & Reel (TR)
  • Base Part Number: OPA342
  • Current - Input Bias: 0.2pA
  • Output Type: Rail-to-Rail
  • Supplier Device Package: SOT-23-5
  • detail: General Purpose Amplifier 1 Circuit Rail-to-Rail SOT-23-5
