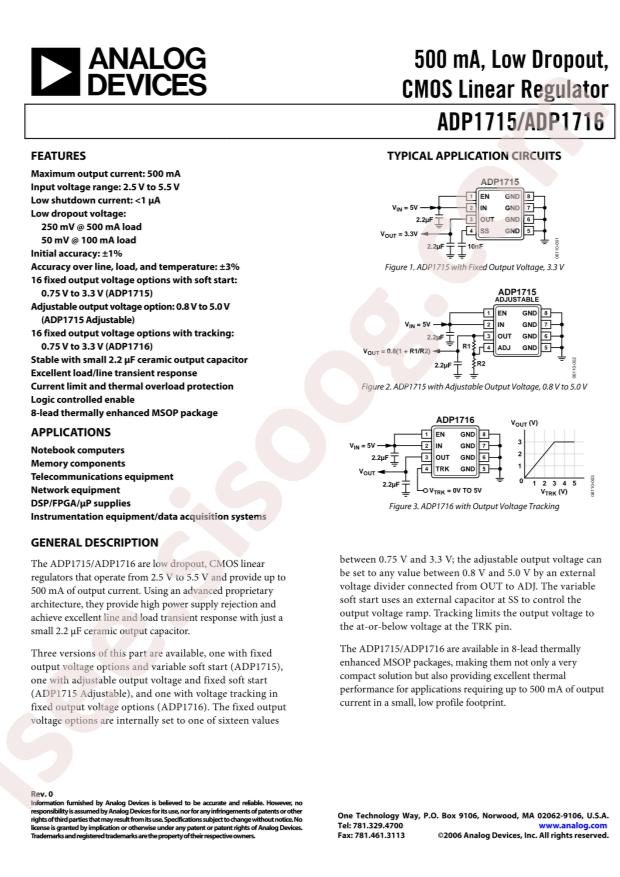

دیتاشیت ADP1715ARMZ-R7
مشخصات دیتاشیت
| نام دیتاشیت |
ADP1715/16
|
| حجم فایل |
613.145
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
20
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Analog Devices ADP1715ARMZ-R7
-
Output Type:
Adjustable
-
Output Current:
500mA
-
Output Voltage:
0.8V~5V
-
Dropout Voltage:
0.4V@(500mA)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
5.5V
-
Operating Temperature:
-40°C~+125°C@(Tj)
-
Quiescent Current (Ground Current):
100uA
-
Package:
MSOP-8
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
5.5V
-
Voltage - Output (Min/Fixed):
0.8V
-
Voltage - Output (Max):
5V
-
Voltage Dropout (Max):
0.4V @ 500mA
-
Current - Output:
500mA
-
Current - Quiescent (Iq):
100µA
-
Current - Supply (Max):
650µA
-
PSRR:
67dB ~ 53dB (1kHz)
-
Control Features:
Enable, Soft Start
-
Protection Features:
Over Current, Over Temperature
-
Mounting Type:
Surface Mount
-
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
-
Supplier Device Package:
8-MSOP
-
Base Part Number:
ADP1715
-
detail:
Linear Voltage Regulator IC 1 Output 500mA 8-MSOP
