دیتاشیت LP5990TM-3.6/NOPB

LP5990

مشخصات دیتاشیت

نام دیتاشیت LP5990
حجم فایل 939.831 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

دانلود دیتاشیت LP5990

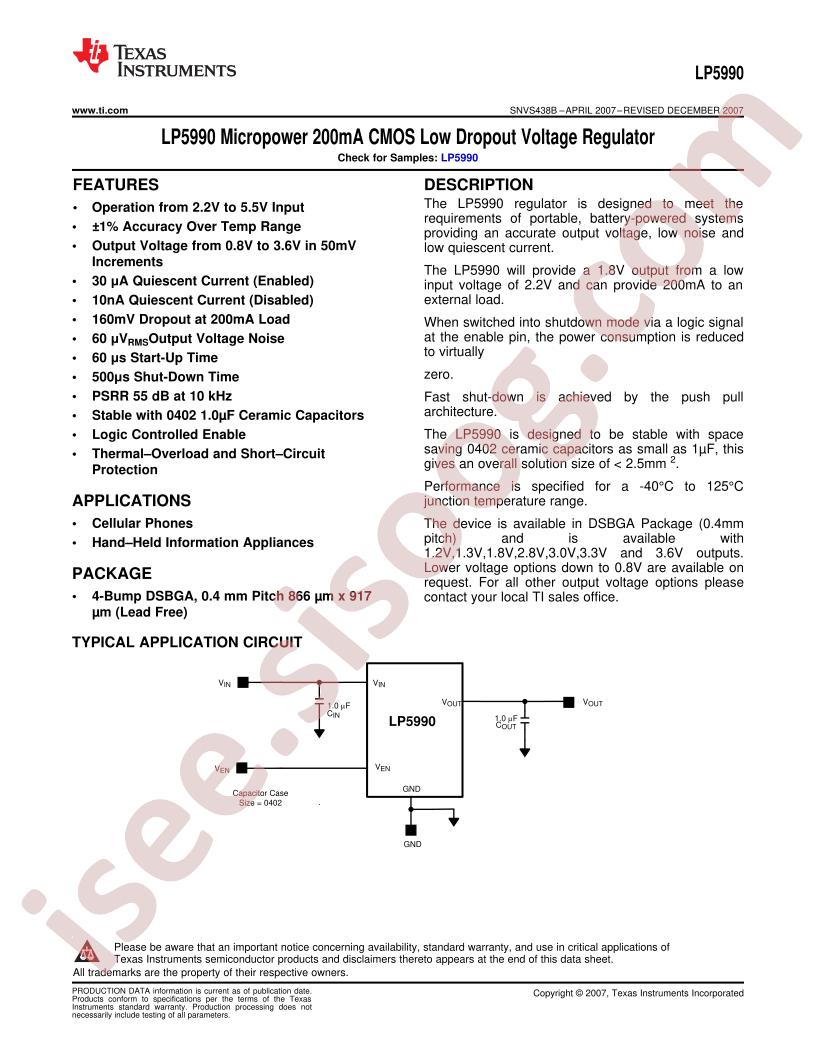

LP5990 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Texas Instruments LP5990TM-3.6/NOPB
  • Output Current: 200mA
  • Output Voltage: 3.6V
  • Dropout Voltage: 0.25V@(200mA)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 5.5V
  • Operating Temperature: -40°C~+85°C
  • Quiescent Current (Ground Current): 75uA
  • Power Supply Rejection Ratio (PSRR): 55dB@(10kHz)
  • Package: BGA-4
  • Manufacturer: Texas Instruments
  • Series: -
  • Voltage Dropout (Max): 0.25V @ 200mA
  • Package / Case: 4-WFBGA, DSBGA
  • Base Part Number: LP5990
  • Supplier Device Package: 4-DSBGA (0.81x0.81)
  • Current - Output: 200mA
  • Current - Quiescent (Iq): 75µA
  • Part Status: Active
  • Voltage - Input (Max): 5.5V
  • Mounting Type: Surface Mount
  • Control Features: Enable
  • Protection Features: Over Current, Over Temperature, Short Circuit
  • Voltage - Output (Min/Fixed): 3.6V
  • PSRR: 55dB (10kHz)
  • Voltage - Output (Max): -
  • Packaging: Cut Tape (CT)
  • Output Configuration: Positive
  • Number of Regulators: 1
  • Output Type: Fixed
  • detail: Linear Voltage Regulator IC 1 Output 200mA 4-DSBGA (0.81x0.81)
