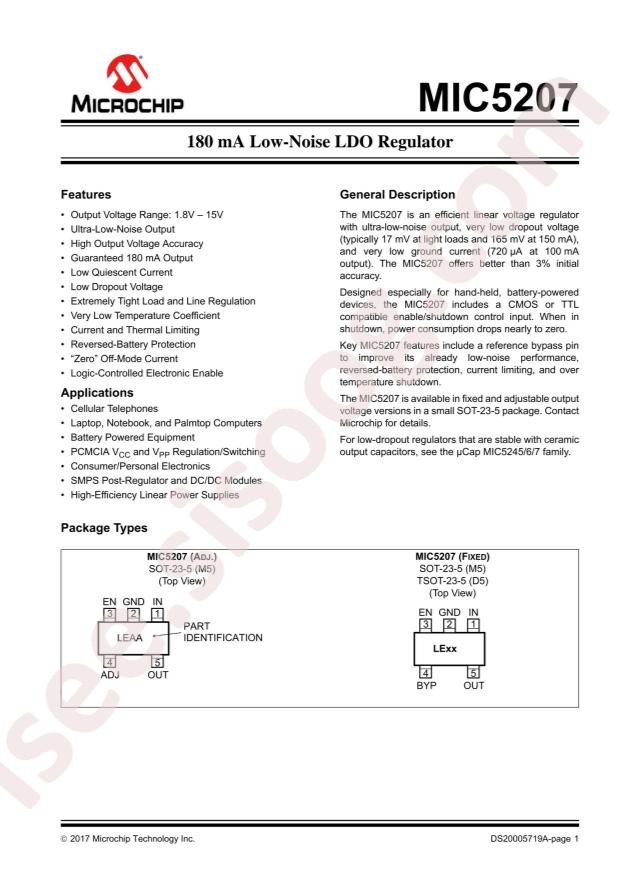

MIC5207YM5-TR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MIC5207YM5-TR
|
|
حجم فایل
|
74.66
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
22
|
مشخصات فنی
-
RoHS:
true
-
Feature:
Overcurrent Protection;Thermal Protection;Reverse connection protection
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Microchip Tech MIC5207YM5-TR
-
Output Type:
Adjustable
-
Output Current:
180mA
-
Output Voltage:
1.8V~15V
-
Dropout Voltage:
400mV@(150mA)
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
16V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
170uA
-
Power Supply Rejection Ratio (PSRR):
-
-
Package:
SOT-23-5
-
Manufacturer:
Microchip Tech
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
16V
-
Voltage - Output (Min/Fixed):
1.8V
-
Voltage - Output (Max):
15V
-
Voltage Dropout (Max):
0.4V @ 150mA
-
Current - Output:
180mA
-
Current - Quiescent (Iq):
170µA
-
Current - Supply (Max):
3µA
-
PSRR:
-
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature, Reverse Polarity
-
Mounting Type:
Surface Mount
-
Package / Case:
SC-74A, SOT-753
-
Supplier Device Package:
SOT-23-5
-
Base Part Number:
MIC5207
-
detail:
Linear Voltage Regulator IC 1 Output 180mA SOT-23-5
