دیتاشیت ADP7142ARDZ-R7
مشخصات دیتاشیت
| نام دیتاشیت |

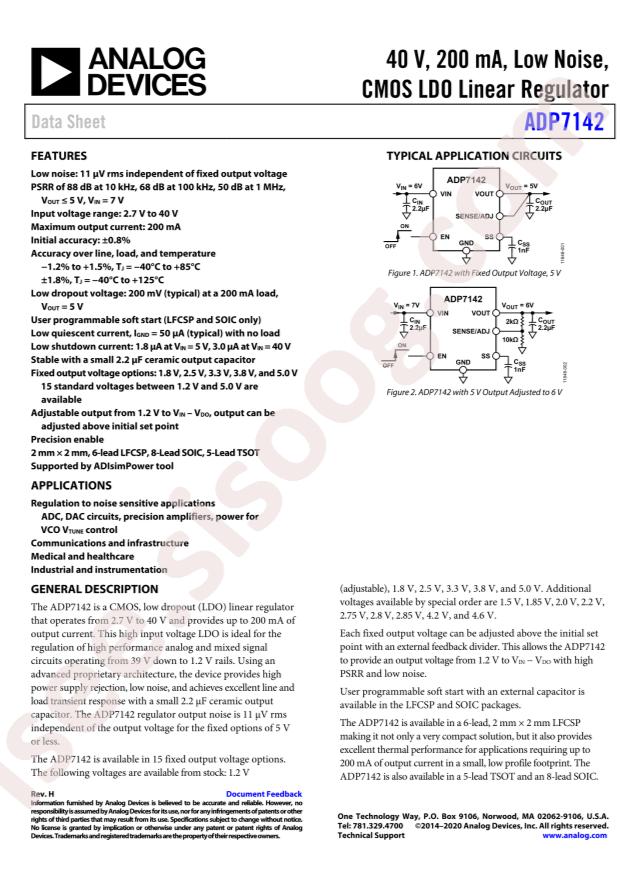

ADP7142
|
| حجم فایل |
1128.557
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
23
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Analog Devices ADP7142ARDZ-R7
-
Output Type:
Adjustable
-
Output Current:
200mA
-
Output Voltage:
1.2V~39.58V
-
Dropout Voltage:
0.42V@(200mA)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
40V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
140uA
-
Package:
SOP-8
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
40V
-
Voltage - Output (Min/Fixed):
1.2V
-
Voltage - Output (Max):
39.58V
-
Voltage Dropout (Max):
0.42V @ 200mA
-
Current - Output:
200mA
-
Current - Quiescent (Iq):
140µA
-
Current - Supply (Max):
320µA
-
PSRR:
88dB ~ 50dB (10kHz ~ 1MHz)
-
Control Features:
Enable, Soft Start
-
Protection Features:
Over Temperature, Short Circuit
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SOIC (0.154", 3.90mm Width) Exposed Pad
-
Supplier Device Package:
8-SOIC-EP
-
Base Part Number:
ADP7142
-
detail:
Linear Voltage Regulator IC 1 Output 200mA 8-SOIC-EP
