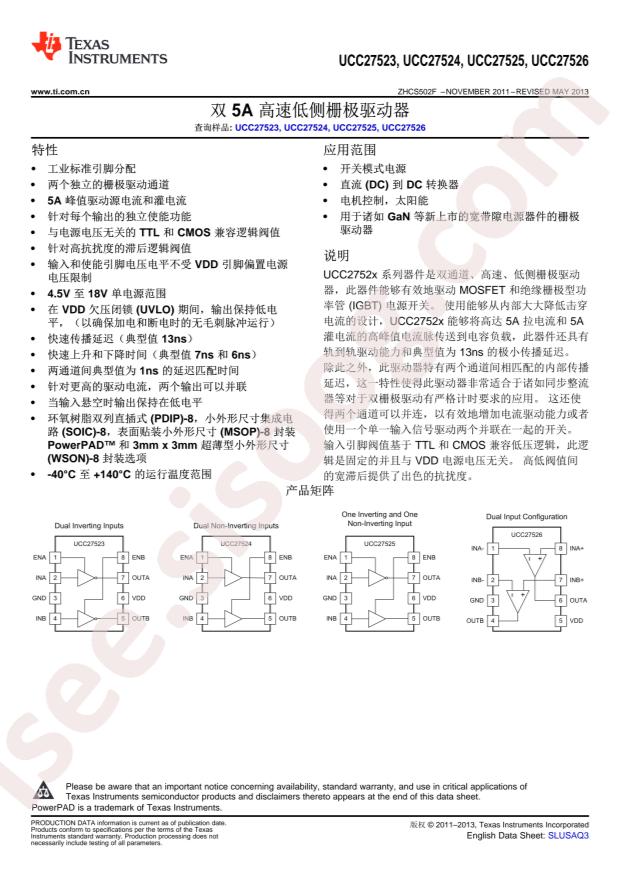

UCC27523DGNR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
UCC27523DGNR
|
|
حجم فایل
|
94.377
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
43
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Gate Drive ICs
-
Datasheet:
Texas Instruments UCC27523DGNR
-
Fall Time:
6ns
-
Load Type:
IGBT;MOSFET
-
Rise Time:
7ns
-
Supply Voltage:
4.5V~18V
-
Number of Drivers:
2
-
Driven Configuration:
Low Side
-
Operating Temperature:
-40°C~+140°C@(Tj)
-
Peak Output Current(sink):
5A
-
Peak Output Current(source):
5A
-
Package:
MSOP-8-EP
-
Manufacturer:
Texas Instruments
-
Series:
-
-
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
-
Current - Peak Output (Source, Sink):
5A, 5A
-
Base Part Number:
UCC275
-
Channel Type:
Independent
-
Rise / Fall Time (Typ):
7ns, 6ns
-
Part Status:
Active
-
Mounting Type:
Surface Mount
-
Logic Voltage - VIL, VIH:
1V, 2.3V
-
Gate Type:
IGBT, N-Channel MOSFET
-
Voltage - Supply:
4.5V ~ 18V
-
Packaging:
Cut Tape (CT)
-
Input Type:
Inverting
-
Supplier Device Package:
8-MSOP-PowerPad
-
detail:
Low-Side Gate Driver IC Inverting 8-MSOP-PowerPad
