دیتاشیت AD603ARZ-REEL7

AD603

مشخصات دیتاشیت

نام دیتاشیت AD603
حجم فایل 801.611 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

دانلود دیتاشیت AD603

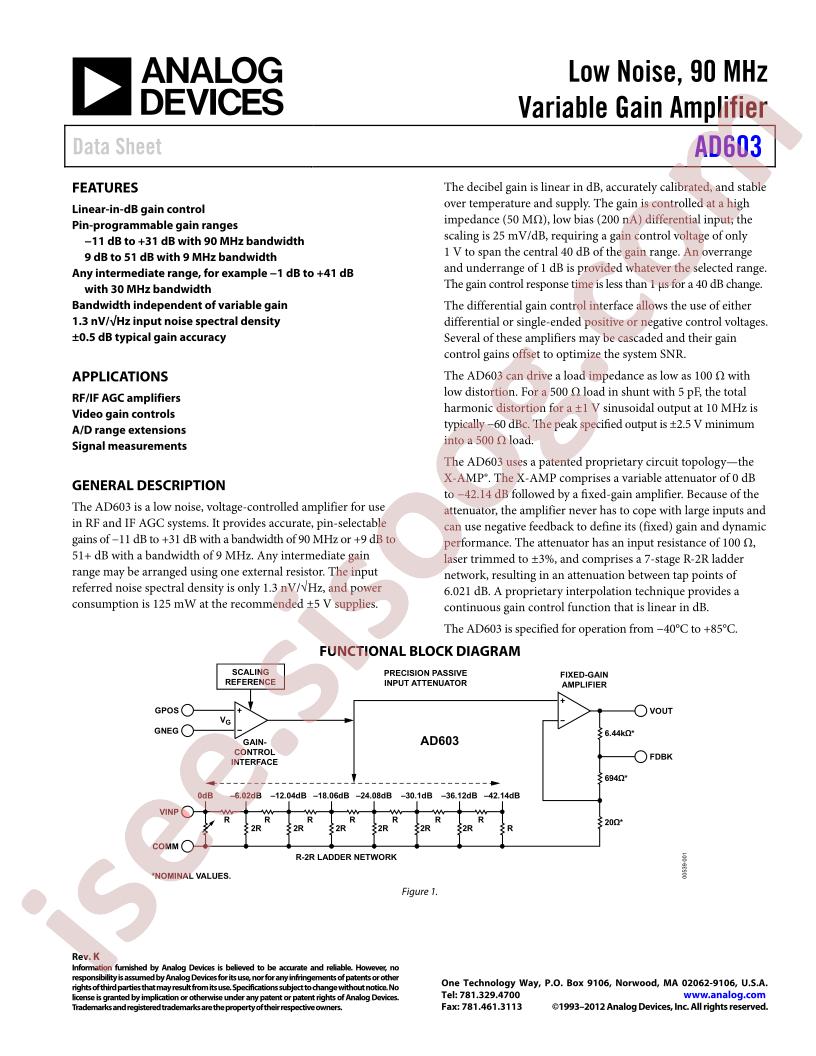

AD603 Datasheet

مشخصات

  • Gain: -
  • RoHS: true
  • Category: Radio Frequency Chip/Antenna/Low Noise Amplifiers (LNA) - RF
  • Datasheet: Analog Devices AD603ARZ-REEL7
  • Noise Figure: 8.8dB
  • Supply Current: 12.5mA
  • Supply Voltage: 4.75V~6.3V
  • Operating Temperature: -40°C~+85°C
  • Package: SOIC-8
  • Manufacturer: Analog Devices
  • Series: X-AMP®
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Amplifier Type: Variable Gain
  • Number of Circuits: 1
  • Output Type: -
  • Slew Rate: 275V/µs
  • -3db Bandwidth: 90MHz
  • Current - Input Bias: 200nA
  • Current - Supply: 12.5mA
  • Current - Output / Channel: 50mA
  • Voltage - Supply, Single/Dual (±): 9.5V ~ 12.6V, ±4.75V ~ 6.3V
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: AD603
  • detail: Variable Gain Amplifier 1 Circuit 8-SOIC
