دیتاشیت AD5684RARUZ

AD5686R/85R/84R

مشخصات دیتاشیت

نام دیتاشیت AD5686R/85R/84R
حجم فایل 1021.984 کیلوبایت
نوع فایل pdf
تعداد صفحات 31

دانلود دیتاشیت AD5686R/85R/84R

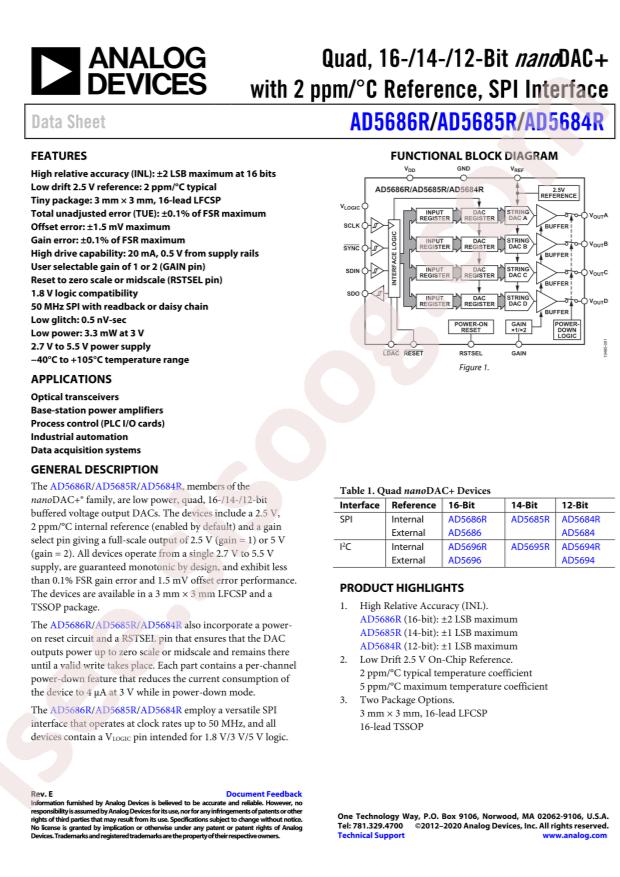

AD5686R/85R/84R Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices AD5684RARUZ
  • Package: TSSOP-16
  • Manufacturer: Analog Devices
  • Series: nanoDAC+®
  • Packaging: Tube
  • Part Status: Active
  • Number of Bits: 12
  • Number of D/A Converters: 4
  • Settling Time: 7µs
  • Output Type: Voltage - Buffered
  • Differential Output: No
  • Data Interface: SPI, DSP
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: 2.7V ~ 5.5V
  • Voltage - Supply, Digital: 1.8V ~ 5.5V
  • INL/DNL (LSB): ±0.12, ±1 (Max)
  • Architecture: String DAC
  • Operating Temperature: -40°C ~ 105°C
  • Package / Case: 16-TSSOP (0.173", 4.40mm Width)
  • Supplier Device Package: 16-TSSOP
  • Mounting Type: Surface Mount
  • Base Part Number: AD5684
  • detail: 12 Bit Digital to Analog Converter 4 16-TSSOP
