دیتاشیت AD7356BRUZ-500RL7
مشخصات دیتاشیت
| نام دیتاشیت | AD7356 |
|---|---|
| حجم فایل | 531.262 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |

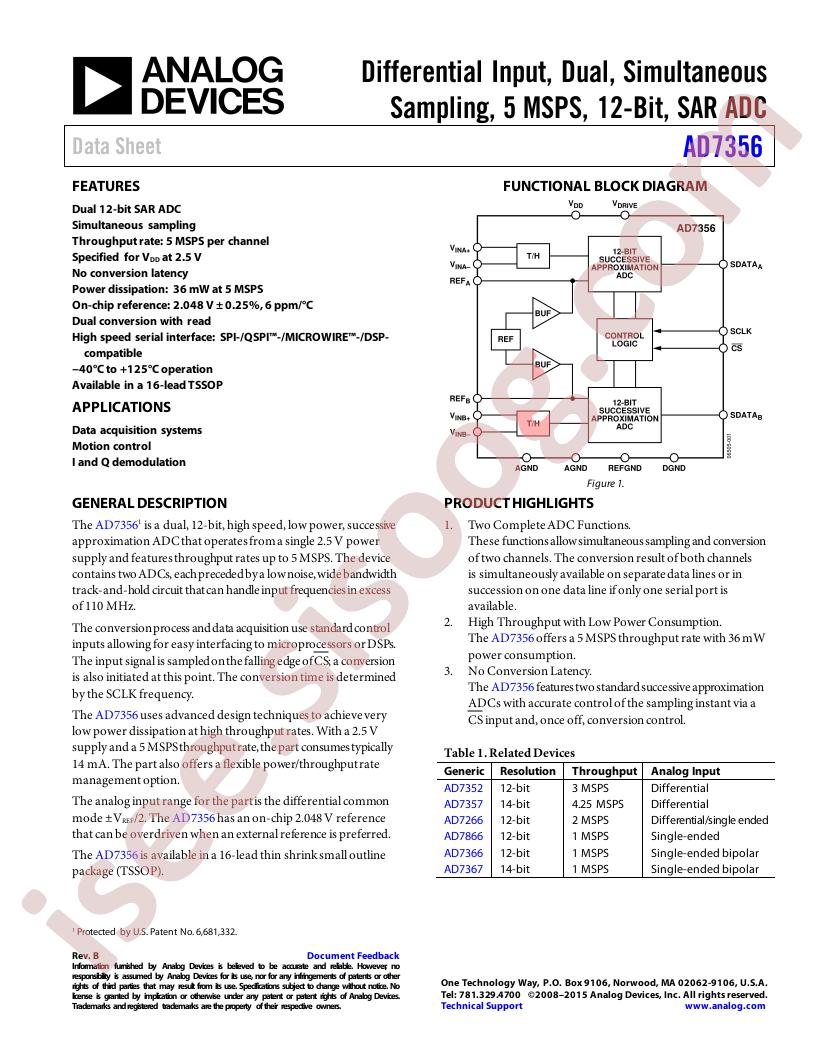

دانلود دیتاشیت AD7356 |
AD7356 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Analog Devices AD7356BRUZ-500RL7
- Interface: SPI;DSP
- resolution: 12
- Supply Voltage: 2.25V~2.75V
- number of channels: 2
- sampling frequency: 5MHz
- Operating Temperature: -40°C~+85°C
- Package: TSSOP-16
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Number of Bits: 12
- Sampling Rate (Per Second): 5M
- Number of Inputs: 2
- Input Type: Differential
- Data Interface: SPI, DSP
- Configuration: S/H-ADC
- Ratio - S/H:ADC: 1:1
- Number of A/D Converters: 2
- Architecture: SAR
- Reference Type: External, Internal
- Voltage - Supply, Analog: 2.25V ~ 2.75V
- Voltage - Supply, Digital: 2.25V ~ 2.75V
- Features: Simultaneous Sampling
- Package / Case: 16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 16-TSSOP
- Mounting Type: Surface Mount
- Base Part Number: AD7356
- detail: 12 Bit Analog to Digital Converter 2 Input 2 SAR 16-TSSOP
