UCC28600TDRQ1 دیتاشیت

UCC28600TDRQ1

مشخصات دیتاشیت

نام دیتاشیت UCC28600TDRQ1
حجم فایل 93.161 کیلوبایت
نوع فایل pdf
تعداد صفحات 32

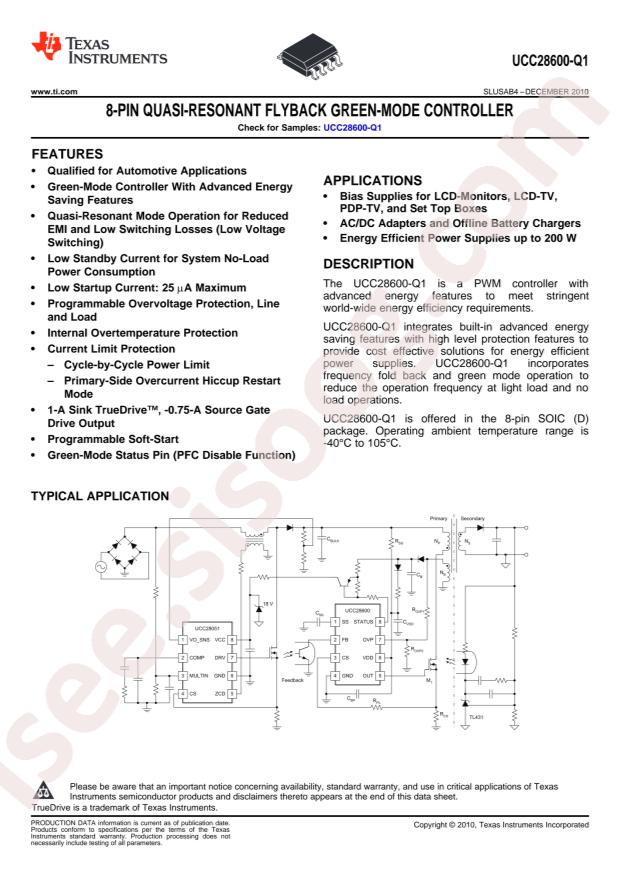

مشاهده دیتاشیت UCC28600TDRQ1

دانلود دیتاشیت

سایر مستندات

UCC28600-Q1 32 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/AC-DC Controllers & Regulators
  • Topology: Flyback
  • Datasheet: Texas Instruments UCC28600TDRQ1
  • Duty Cycle: 99%
  • Supply Voltage: 8V~21V
  • Output Isolation: Isolation
  • Switching Frequency: 40kHz~130kHz
  • Operating Temperature: -40°C~+105°C@(Ta)
  • Package: SOP-8
  • Manufacturer: Texas Instruments
  • Series: Automotive, AEC-Q100
  • Power (Watts): 200W
  • Supplier Device Package: 8-SOIC
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Frequency - Switching: 40kHz ~ 130kHz
  • Voltage - Supply (Vcc/Vdd): 8V ~ 21V
  • Part Status: Active
  • Fault Protection: Current Limiting, Over Temperature, Over Voltage
  • Voltage - Breakdown: -
  • Control Features: Soft Start
  • Internal Switch(s): No
  • Voltage - Start Up: 13V
  • Mounting Type: Surface Mount
  • Packaging: Cut Tape (CT)
  • Base Part Number: UCC286
  • detail: Converter Offline Flyback Topology 40kHz ~ 130kHz 8-SOIC
