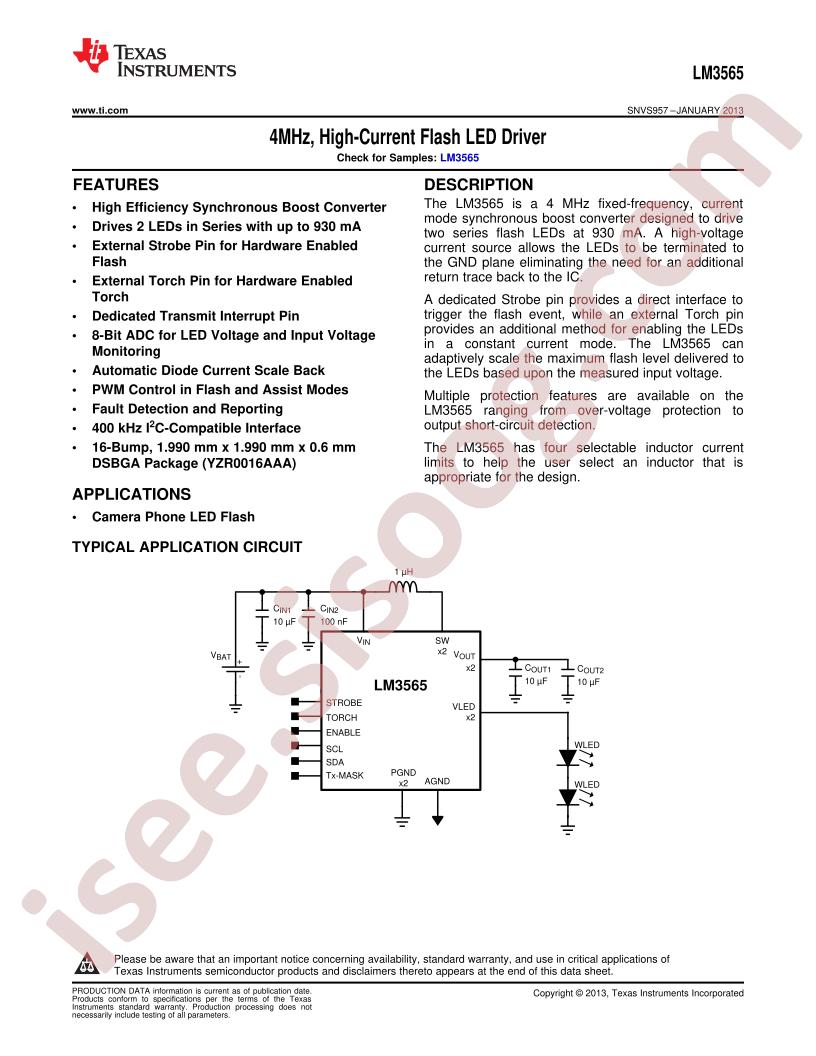

LM3565 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LM3565
|
|
حجم فایل
|
1359.153
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
35
|
مشخصات فنی
-
RoHS:
true
-
Type:
DC-DCVoltage Stabilizer
-
Dimming:
PWM
-
Category:
Nixie Tube Driver/LED Driver/LED Drivers
-
Channels:
1
-
Topology:
boost converter
-
Datasheet:
Texas Instruments LM3565TLX/NOPB
-
Input Voltage:
2.5V~5.5V
-
Output Current:
930mA
-
Output Voltage:
5.5V~8.5V
-
Switch Frequency:
4MHz
-
Operating temperature:
-30°C~+85°C
-
Package:
BGA-16
-
Manufacturer:
Texas Instruments
-
Series:
-
-
Package / Case:
16-WFBGA, DSBGA
-
Frequency:
4MHz
-
Number of Outputs:
1
-
Part Status:
Active
-
Mounting Type:
Surface Mount
-
Internal Switch(s):
Yes
-
Applications:
Camera Flash
-
Voltage - Supply (Min):
2.5V
-
Current - Output / Channel:
930mA (Flash)
-
Voltage - Output:
5.5V ~ 8.5V
-
Packaging:
Cut Tape (CT)
-
Base Part Number:
LM3565
-
Supplier Device Package:
16-DSBGA (2.5x2.12)
-
Voltage - Supply (Max):
5.5V
-
detail:
LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) PWM Dimming 930mA (Flash) 16-DSBGA (2.5x2.12)
