دیتاشیت ADP172ACBZ-1.8-R7
مشخصات دیتاشیت
| نام دیتاشیت | ADP172 Series |
|---|---|
| حجم فایل | 559.857 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |
دانلود دیتاشیت ADP172 Series |

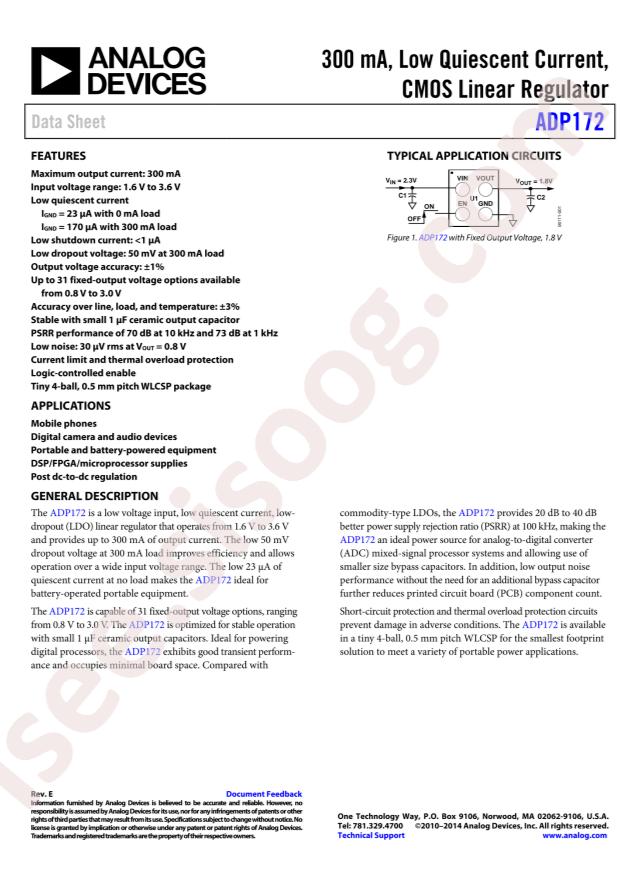

ADP172 Series Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Analog Devices ADP172ACBZ-1.8-R7
- Output Type: Fixed
- Output Current: 300mA
- Output Voltage: 1.8V
- Dropout Voltage: 100mV@(300mA)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 3.6V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 60uA
- Power Supply Rejection Ratio (PSRR): 73dB@(1kHz),47dB@(100kHz)
- Package: WLCSP-4
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Number of Regulators: 1
- Voltage - Input (Max): 3.6V
- Voltage - Output (Min/Fixed): 1.8V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.1V @ 300mA
- Current - Output: 300mA
- Current - Quiescent (Iq): 60µA
- Current - Supply (Max): 260nA
- PSRR: 73dB ~ 47dB (1kHz ~ 100kHz)
- Control Features: Enable
- Protection Features: Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- Mounting Type: Surface Mount
- Package / Case: 4-UFBGA, WLCSP
- Supplier Device Package: 4-WLCSP (0.95x1.03)
- Base Part Number: ADP172
- detail: Linear Voltage Regulator IC 1 Output 300mA 4-WLCSP (0.95x1.03)
