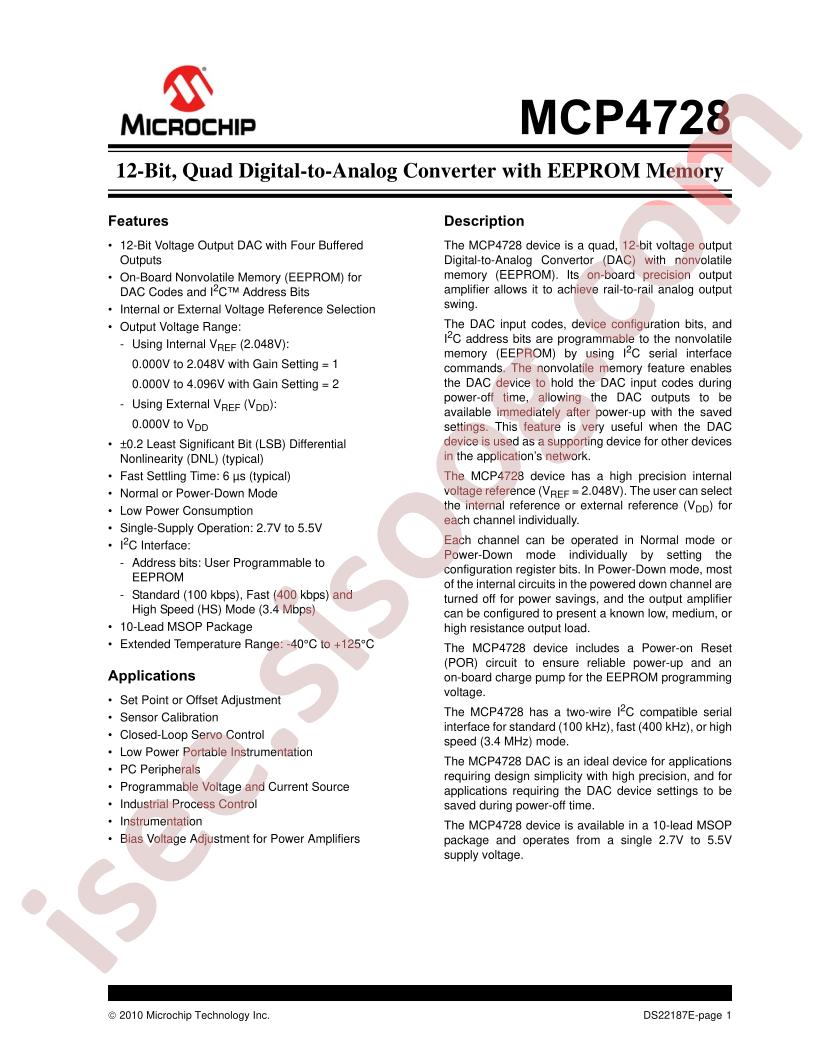

دیتاشیت MCP4728A1T-E/UN
مشخصات دیتاشیت
| نام دیتاشیت |
MCP4728
|
| حجم فایل |
3007.694
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
68
|
مشخصات
-
RoHS:
true
-
Category:
ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
-
Datasheet:
Microchip Tech MCP4728A1T-E/UN
-
Interface:
I2C
-
Resolution:
12Bit
-
Output Type:
Voltage-缓冲
-
Settling Time:
6us
-
Supply Voltage:
2.7V~5.5V
-
Integral nonlinearity:
±2LSB;±0.2LSB
-
Operating Temperature:
-40°C~+125°C
-
Package:
MSOP-10
-
Manufacturer:
Microchip Tech
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Number of Bits:
12
-
Number of D/A Converters:
4
-
Differential Output:
No
-
Data Interface:
I²C
-
Reference Type:
Internal, Supply
-
Voltage - Supply, Analog:
2.7V ~ 5.5V
-
Voltage - Supply, Digital:
2.7V ~ 5.5V
-
INL/DNL (LSB):
±2, ±0.2
-
Architecture:
String DAC
-
Package / Case:
10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
-
Supplier Device Package:
10-MSOP
-
Mounting Type:
Surface Mount
-
Base Part Number:
MCP4728
-
detail:
12 Bit Digital to Analog Converter 4 10-MSOP
