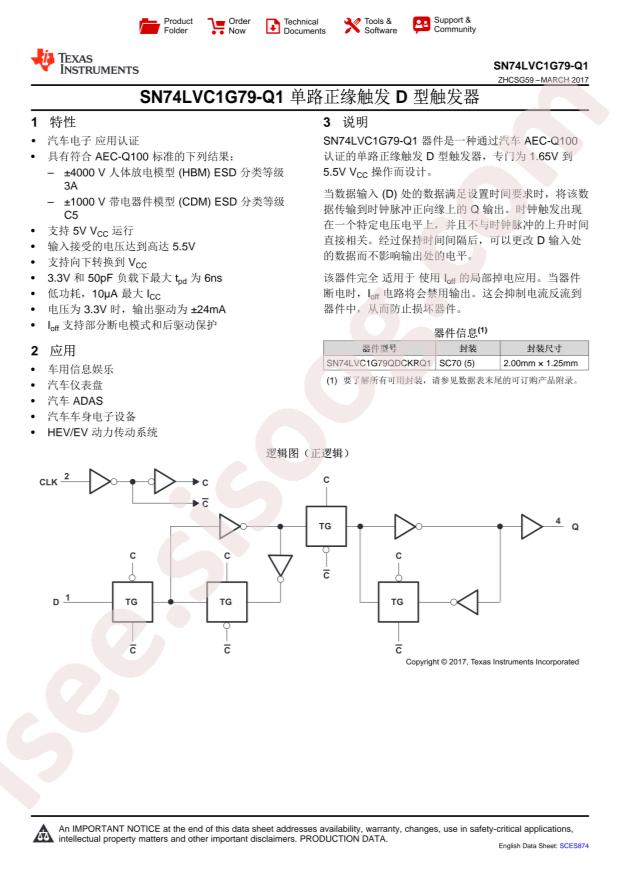

SN74LVC1G79QDCKTQ1 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74LVC1G79QDCKTQ1 |
|---|---|
| حجم فایل | 69.836 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 21 |
دانلود دیتاشیت SN74LVC1G79QDCKTQ1 |
دانلود دیتاشیت |
|---|
سایر مستندات
Logic Guide 20 pages
Signal Switch Data Book 1267 pages
Digital Logic Data Book 794 pages
SN74LVC1G79-Q1 Datasheet 22 pages
مشخصات فنی
- RoHS: true
- Type: D-Type
- Series: 74LVC
- Category: Logic ICs/Flip Flops
- Datasheet: Texas Instruments SN74LVC1G79QDCKTQ1
- Output Type: Non-Inverted
- Sink Current: 32mA
- Trigger Type: 上升沿
- Source Current: 32mA
- Supply Voltage: 1.65V~5.5V
- Clock Frequency: 160MHz
- Input Capacitance: 4pF
- Number of Elements: 1
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Iq): 10uA
- Maximum Propagation Delay: 5ns@5V,50pF
- Number of Bits per Element: 1
- Package: SC-70-5
- Manufacturer: Texas Instruments
- Package / Case: 5-TSSOP, SC-70-5, SOT-353
- Current - Output High, Low: 32mA, 32mA
- Function: Standard
- Current - Quiescent (Iq): 10µA
- Part Status: Active
- Mounting Type: Surface Mount
- Max Propagation Delay @ V, Max CL: 5ns @ 5V, 50pF
- Voltage - Supply: 1.65V ~ 5.5V
- Packaging: Digi-Reel®
- Base Part Number: SN74LVC1G
- Supplier Device Package: SC-70-5
- detail: Flip Flop 1 Element D-Type 1 Bit Positive Edge 5-TSSOP, SC-70-5, SOT-353
