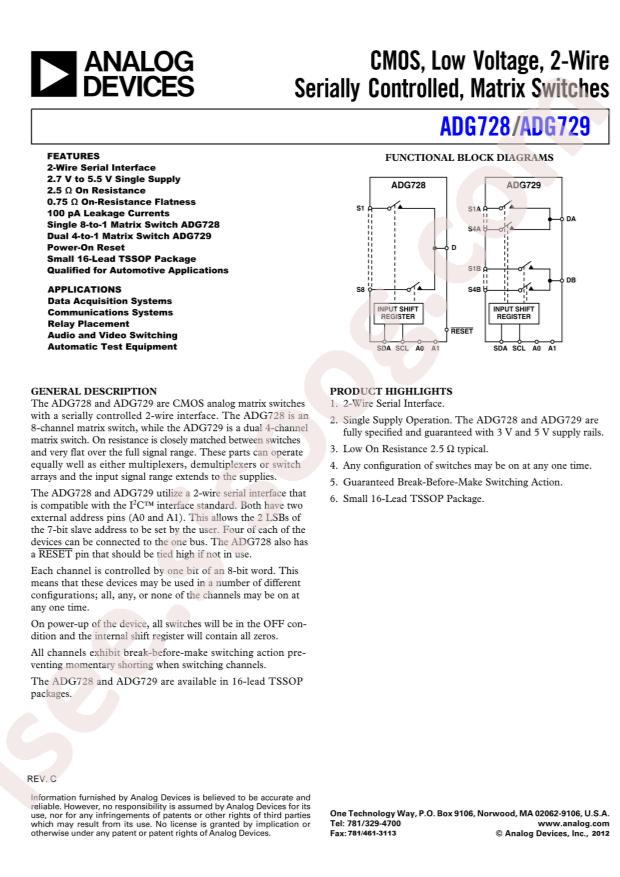

دیتاشیت ADG728BRUZ-REEL7
مشخصات دیتاشیت
| نام دیتاشیت |
ADG728,729
|
| حجم فایل |
362.947
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
13
|
مشخصات
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
-
Datasheet:
Analog Devices ADG728BRUZ-REEL7
-
Turn-on time:
95ns
-
Turn-off time:
85ns
-
Supply Voltage:
2.7V~5.5V
-
Number of Channels:
1
-
On-State Resistance (Max):
4.5Ω
-
Package:
TSSOP-16
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Switch Circuit:
-
-
Multiplexer/Demultiplexer Circuit:
8:1
-
Number of Circuits:
1
-
Channel-to-Channel Matching (ΔRon):
-
-
Voltage - Supply, Single (V+):
2.7V ~ 5.5V
-
Voltage - Supply, Dual (V±):
-
-
Switch Time (Ton, Toff) (Max):
95ns, 85ns (Typ)
-
-3db Bandwidth:
65MHz
-
Charge Injection:
3pC
-
Channel Capacitance (CS(off), CD(off)):
13pF, 85pF
-
Current - Leakage (IS(off)) (Max):
100pA
-
Crosstalk:
-75dB @ 1MHz
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Mounting Type:
Surface Mount
-
Package / Case:
16-TSSOP (0.173", 4.40mm Width)
-
Supplier Device Package:
16-TSSOP
-
Base Part Number:
ADG728
-
detail:
1 Circuit IC Switch 8:1 4.5Ohm 16-TSSOP
