دیتاشیت ADM7154ACPZ-3.3-R7

ADM7154

مشخصات دیتاشیت

نام دیتاشیت ADM7154
حجم فایل 788.413 کیلوبایت
نوع فایل pdf
تعداد صفحات 23

دانلود دیتاشیت ADM7154

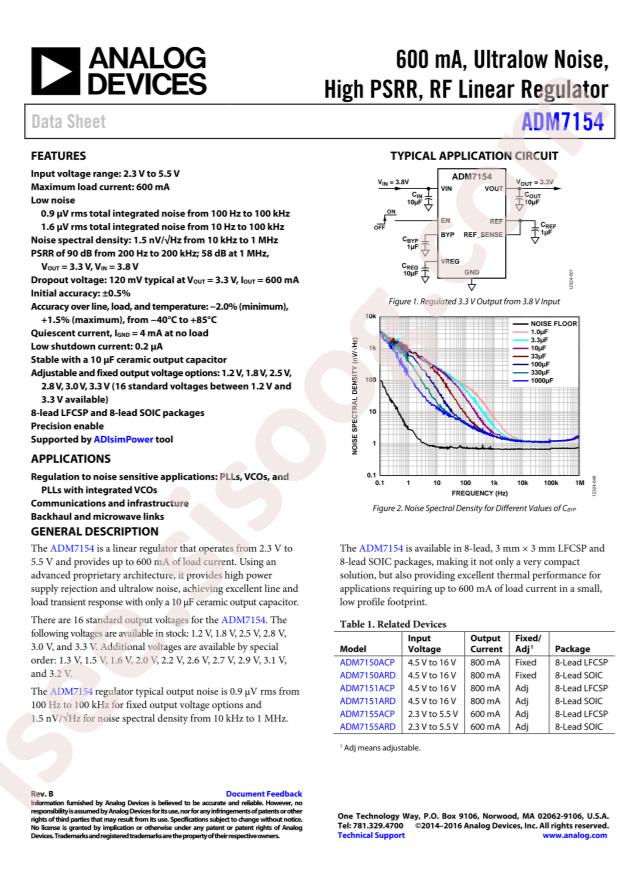

ADM7154 Datasheet

مشخصات

  • Manufacturer: Analog Devices Inc.
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 1
  • Voltage - Input (Max): 5.5V
  • Voltage - Output (Min/Fixed): 3.3V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.21V @ 600mA
  • Current - Output: 600mA
  • Current - Quiescent (Iq): 7mA
  • Current - Supply (Max): 10mA
  • PSRR: 58dB (1MHz)
  • Control Features: Enable
  • Protection Features: Over Current, Over Temperature
  • Operating Temperature: -40°C ~ 125°C
  • Mounting Type: Surface Mount
  • Package / Case: 8-WFDFN Exposed Pad, CSP
  • Supplier Device Package: 8-LFCSP-WD (3x3)
  • Base Part Number: ADM7154
  • detail: Linear Voltage Regulator IC 1 Output 600mA 8-LFCSP-WD (3x3)
