TLC3702QDRQ1 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TLC3702QDRQ1
|
|
حجم فایل
|
100.373
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
32
|
مشخصات فنی
-
RoHS:
true
-
Category:
Operational Amplifier/Comparator/Comparators
-
Datasheet:
Texas Instruments TLC3702QDRQ1
-
Output Type:
CMOS;Push Pull;TTL
-
Supply Voltage:
4V~16V
-
Number of Elements:
-
-
Operating Temperature:
-40°C~+125°C
-
Input Bias Current (Ib):
5pA
-
Input Offset Voltage (Vos):
5mV
-
Input Hysteresis Voltage (Vhys):
-
-
Common Mode Rejection Ratio (CMRR):
84dB
-

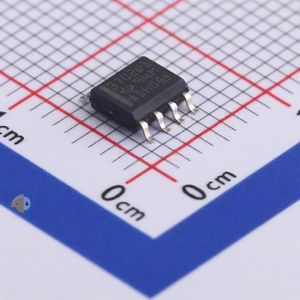

Package:
SOP-8
-
Manufacturer:
Texas Instruments
-
Series:
Automotive, AEC-Q100, LinCMOS™
-
Type:
General Purpose
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Voltage - Input Offset (Max):
5mV @ 10V
-
Current - Output (Typ):
20mA
-
Part Status:
Active
-
Base Part Number:
TLC370
-
Mounting Type:
Surface Mount
-
Voltage - Supply, Single/Dual (±):
4V ~ 16V
-
Propagation Delay (Max):
4.5µs
-
Current - Input Bias (Max):
5pA @ 5V
-
Hysteresis:
-
-
Packaging:
Digi-Reel®
-
CMRR, PSRR (Typ):
84dB CMRR
-
Current - Quiescent (Max):
90µA
-
Supplier Device Package:
8-SOIC
-
detail:
Comparator General Purpose CMOS, Push-Pull, TTL 8-SOIC
