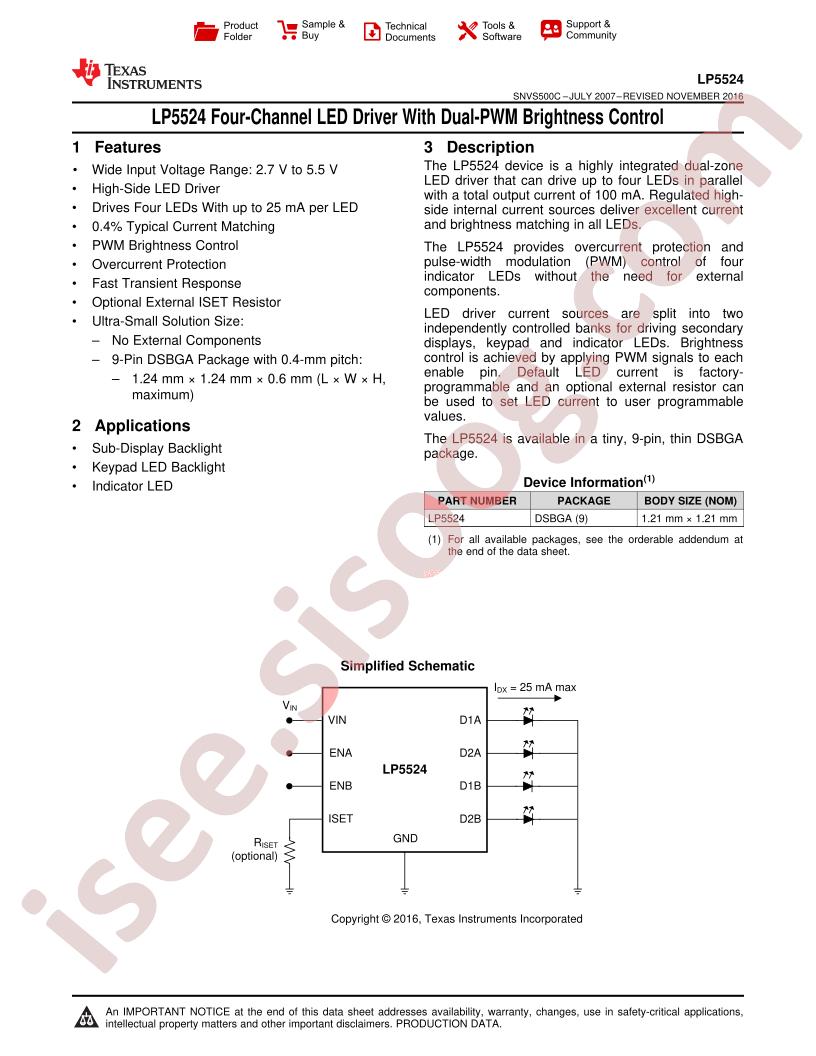

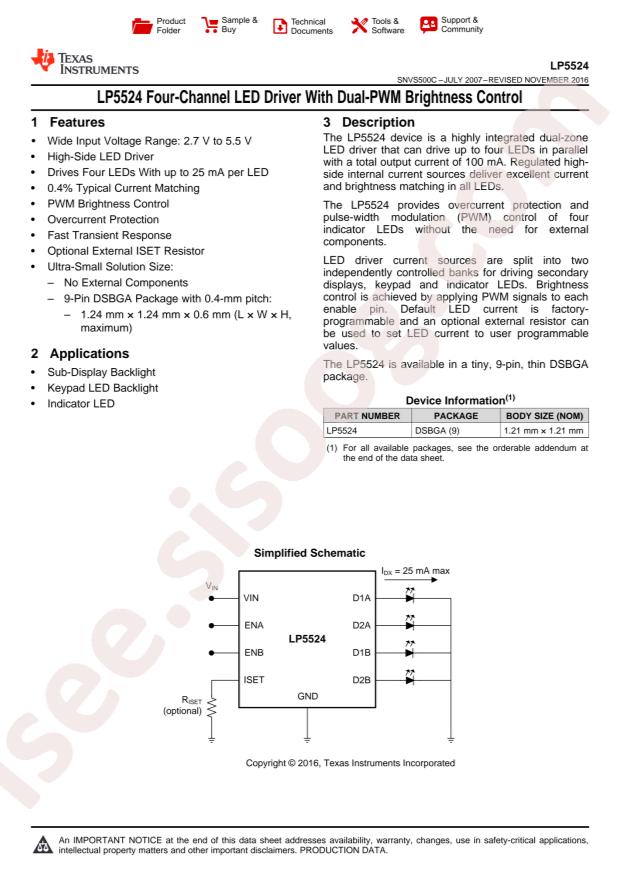

دیتاشیت LP5524TM-5/NOPB

LP5524 Datasheet

مشخصات دیتاشیت

نام دیتاشیت LP5524 Datasheet
حجم فایل 873.807 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

دانلود دیتاشیت LP5524 Datasheet

LP5524 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Type: Linear
  • Dimming: PWM
  • Category: Nixie Tube Driver/LED Driver/LED Drivers
  • Channels: 4
  • Datasheet: Texas Instruments LP5524TM-5/NOPB
  • Input Voltage: 2.7V~5.5V
  • Output Current: 25mA
  • Operating temperature: -40°C~+85°C
  • Package: BGA-9
  • Manufacturer: Texas Instruments
  • Series: -
  • Package / Case: 9-WFBGA
  • Frequency: -
  • Number of Outputs: 4
  • Topology: -
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Internal Switch(s): Yes
  • Applications: Backlight
  • Voltage - Supply (Min): 2.7V
  • Current - Output / Channel: 25mA
  • Voltage - Output: -
  • Packaging: Cut Tape (CT)
  • Base Part Number: LP5524
  • Supplier Device Package: 9-µSMD (1.25x1.25)
  • Voltage - Supply (Max): 5.5V
  • detail: LED Driver IC 4 Output Linear PWM Dimming 25mA 9-µSMD (1.25x1.25)
