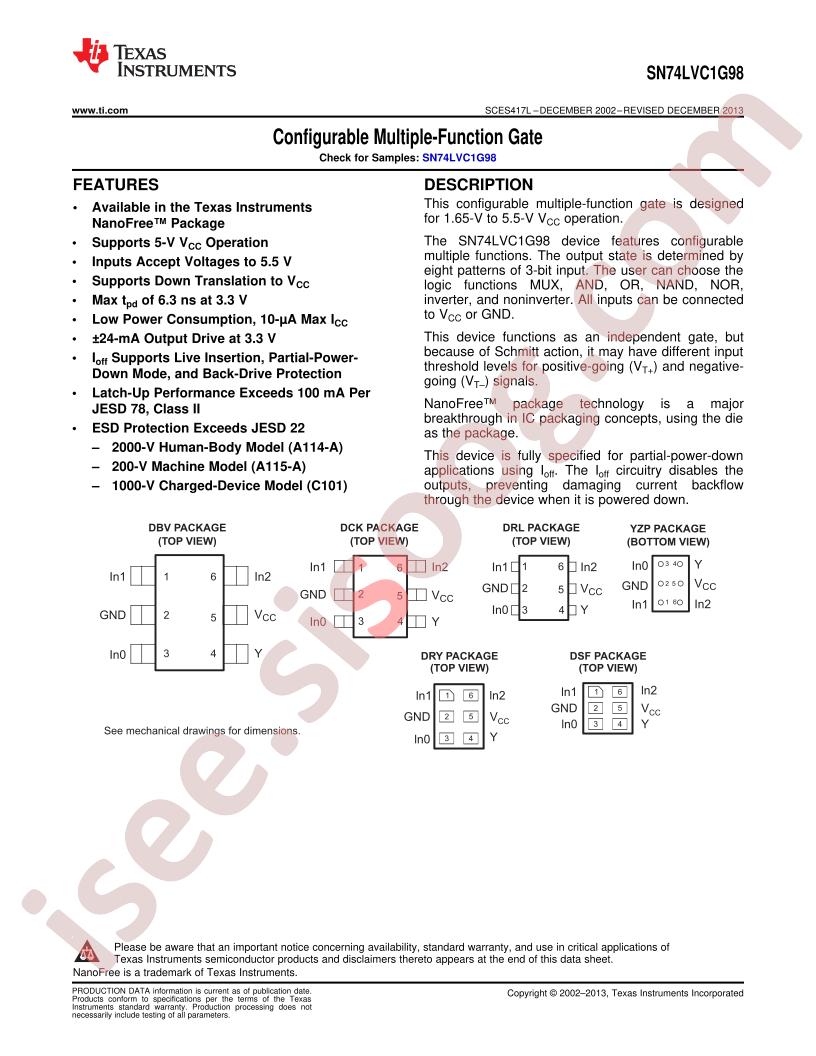

SN74LVC1G98 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SN74LVC1G98
|
|
حجم فایل
|
2668.92
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
31
|
مشخصات فنی
-
RoHS:
true
-
Category:
Logic ICs/Gates
-
Datasheet:
Texas Instruments SN74LVC1G98DCKTG4
-
Package:
SC-70-6
-
Manufacturer:
Texas Instruments
-
Series:
74LVC
-
Package / Case:
6-TSSOP, SC-88, SOT-363
-
Number of Circuits:
1
-
Number of Inputs:
3
-
Part Status:
Active
-
Current - Output High, Low:
32mA, 32mA
-
Mounting Type:
Surface Mount
-
Schmitt Trigger Input:
No
-
Operating Temperature:
-40°C ~ 125°C
-
Voltage - Supply:
1.65V ~ 5.5V
-
Packaging:
Cut Tape (CT)
-
Base Part Number:
SN74LVC1G
-
Logic Type:
Configurable Multiple Function
-
Output Type:
Single-Ended
-
Supplier Device Package:
SC-70-6
-
detail:
Configurable Multiple Function Configurable 1 Circuit 3 Input SC-70-6
